Why does bale density matter for scrap sales?

Denser bales pack more weight into the same truck or container volume, which improves freight economics, especially for export shipments.

Do you provide installation and after-sales support?

Yes. Installation, commissioning, operator training and AMC plans are all part of our standard support.

Scrap Baling Press Machines

Double Compression Hydraulic Scrap Baler Machine

Name: Double Compression Hydraulic Scrap Baler Machine
Brand: Narshinga Industries

Scrap Baling Press Machines

Overview

Twin-stage compression baler that pre-compacts then final-presses scrap for denser bales than a single-stage press of the same tonnage.

The Double Compression Hydraulic Scrap Baler Machine runs material through a pre-compression stage before the main pressing cylinder makes the final bale, squeezing out more air and trapped voids than a single-stage press.

The result is a denser, more stable bale for the same footprint and tonnage class, which improves freight economics for yards shipping baled scrap by weight.

Get a Quote Talk to an Engineer WhatsApp Us +91 74879 34510 Request Brochure

Machine images

Front View

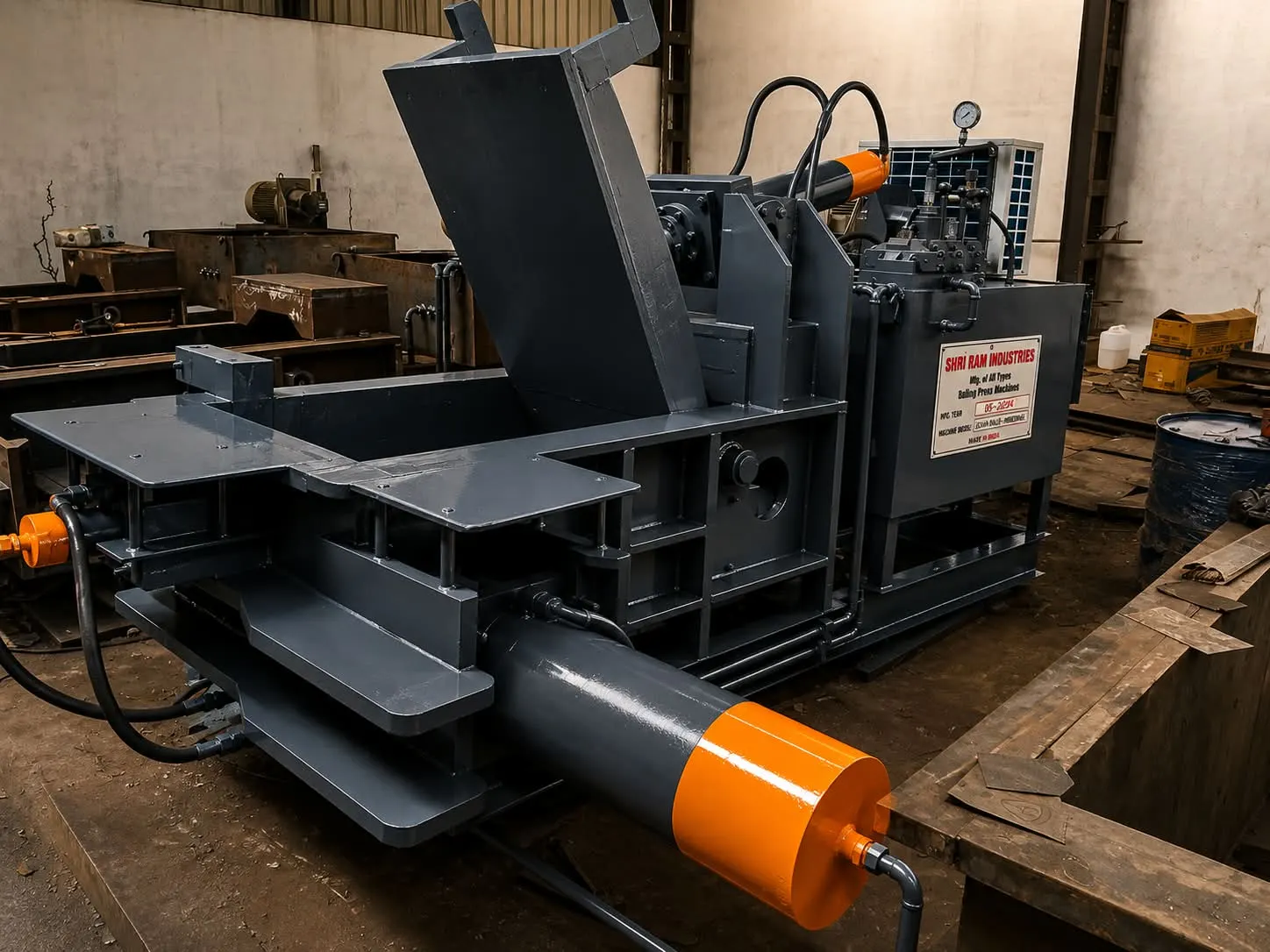

Side View

Available models & capacities

Model	Capacity
NSG DCB-150	150 Ton total pressing force
NSG DCB-250	250 Ton total pressing force
NSG DCB-350	350 Ton total pressing force

Technical specifications

Pressing Force	150 - 350 Ton (combined pre-compression + main)
Bale Size	400 x 400 x 400mm to 600 x 500 x 500mm
Feed Opening Size	1500 x 1000mm to 2100 x 1300mm
Cylinder Size	Pre-compression + main cylinders, Ø180mm - Ø320mm bore
Motor Power	20 HP - 65 HP
Hydraulic Pressure	240 - 300 kg/cm²
Pump Capacity	75 - 170 LPM
Oil Tank Capacity	400 - 850 Litres
Cycle Time	55 - 95 seconds per bale
Machine Weight	7 - 17 Tons
Overall Dimensions	4.3m x 2.1m x 2.6m (approx., model dependent)
Power Supply	415V, 3 Phase, 50Hz
Control Panel	PLC control panel with sequenced two-stage cycle
Automation Type	Semi-automatic / fully automatic two-stage compression

Features

Heavy duty fabricated construction for continuous industrial use

High performance with fast, consistent cycle times

Low power consumption relative to output

Easy operation with operator-friendly controls

Low maintenance design with easy access to wear parts

Long service life, built for multi-shift operation

High productivity with minimal downtime

Safety features including guarding, interlocks & overload protection

Applications

High-density MS/HMS scrap baling
Turnings & light scrap densification
Export-grade bale preparation
Freight-optimised scrap consolidation

Industries served

Scrap export yards
Steel re-rolling mills
Foundries
Recycling processors

Standard accessories

Hydraulic power pack
PLC two-stage sequencing control
Safety guarding & interlocks
Oil cooler
Bale ejection trolley

Optional accessories

Conveyor feeding system
PLC-HMI touch screen upgrade
Bale weighing system
Automatic lubrication system

Media & documentation

Working video

Available on request

Technical drawing

Available on request

Machine brochure (PDF)

Available on request

Warranty

12 months on machine and hydraulic system; 6 months on electricals.

Installation & commissioning

Foundation guidance, on-site installation, hydraulic commissioning and operator training included.

Delivery time

6 - 8 weeks from order confirmation.

Spare parts availability

Cylinders, seals, pumps, valves and control components stocked for quick dispatch.

After-sales service & AMC

AMC plans, preventive maintenance visits and breakdown support.

Customisation options

Custom bale density target for export logistics
Higher tonnage cylinders for denser bales
Conveyor-fed automatic loading

Frequently asked questions

Answers to what buyers most often ask before ordering this machine.

Material is pre-compressed in a first stage before the main cylinder presses the final bale, squeezing out more air than a single-stage press for a denser result.
