Triple Action Baling Press Machine
Overview
Heavy-duty triple-action hydraulic press that compacts metal scrap, turnings, and structural offcuts into dense, easy-to-handle bales in a single automatic cycle.
Our Triple Action Baling Press Machine uses three coordinated hydraulic cylinders — main pressing, side compression, and ejection — to produce tight, uniform bales from ferrous and non-ferrous scrap, HMS, machine turnings, and sheet cuttings.
The triple-action cycle compresses material from three directions before ejecting a fully formed rectangular bale, giving higher density and better resale value than single or double action presses of the same tonnage.
Machine images
Front View

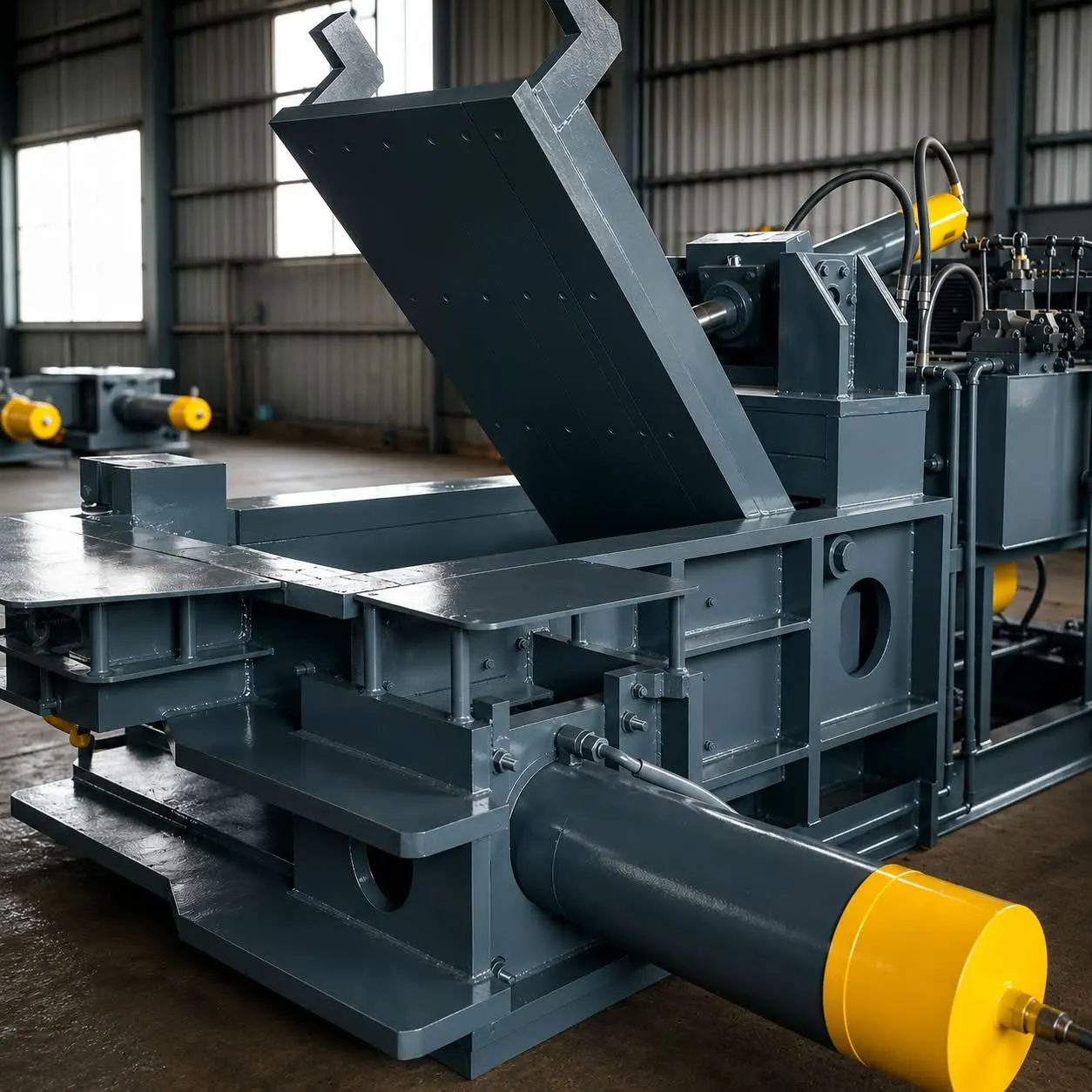

Side View

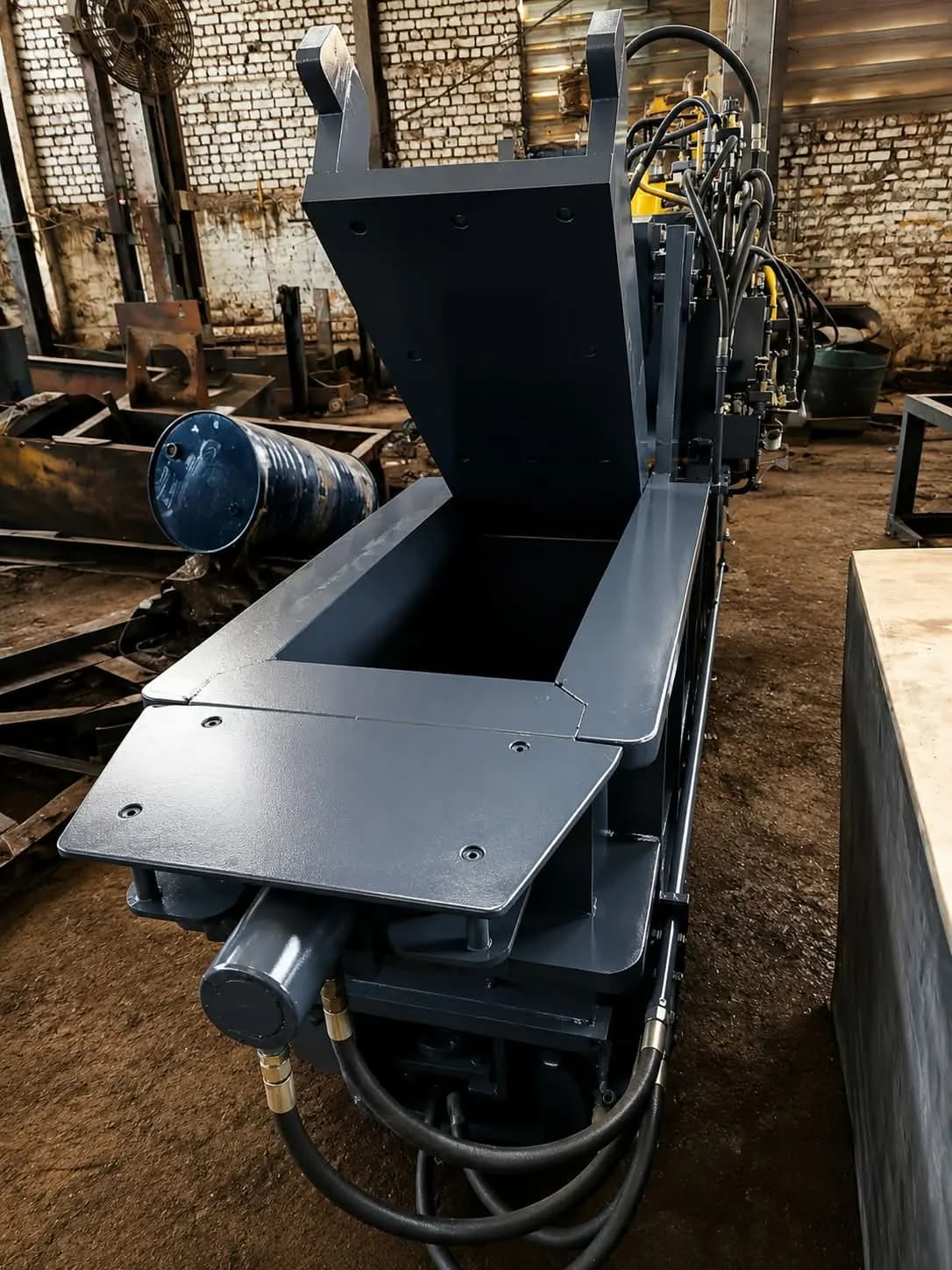

Rear View
Available models & capacities
| Model | Capacity |
|---|---|
| NSG TAP-150 | 150 Ton pressing force |
| NSG TAP-250 | 250 Ton pressing force |
| NSG TAP-400 | 400 Ton pressing force |
| NSG TAP-630 | 630 Ton pressing force |
Technical specifications
| Pressing Force | 150 - 630 Ton (model dependent) |
|---|---|
| Bale Size | 300 x 300 x 300 mm to 600 x 500 x 500 mm |
| Feed Opening Size | 1200 x 800 mm to 2000 x 1200 mm |
| Cylinder Size | 3 cylinders - Ø200mm to Ø400mm bore (main, side, ejection) |
| Motor Power | 22 HP - 100 HP |
| Hydraulic Pressure | 250 - 320 kg/cm² |
| Pump Capacity | 80 - 250 LPM |
| Oil Tank Capacity | 500 - 1500 Litres |
| Cycle Time | 60 - 120 seconds per bale |
| Machine Weight | 8 - 28 Tons |
| Overall Dimensions | 4.5m x 2.2m x 2.8m (approx., model dependent) |
| Power Supply | 415V, 3 Phase, 50Hz |
| Control Panel | PLC-based control panel with manual override |
| Automation Type | Semi-automatic / fully automatic (customer's choice) |
Features
Applications
- Baling of MS/HMS scrap
- Turnings & borings compaction
- Sheet metal offcuts
- Machine shop scrap consolidation
- Auto-body & white goods scrap
Industries served
- Steel re-rolling mills
- Scrap recycling yards
- Auto dismantling units
- Foundries
- Sheet metal fabrication units
Standard accessories
- Hydraulic power pack
- PLC control panel
- Safety guarding & limit switches
- Oil cooler
- Bale ejection trolley
Optional accessories
- Conveyor feeding system
- PLC-HMI touch screen upgrade
- Bale weighing system
- Extra pressing cylinder for higher density
- Automatic lubrication system
Media & documentation
Working video
Available on request
Technical drawing
Available on request
Machine brochure (PDF)
Available on request
Warranty
12 months on the complete machine and hydraulic system from the date of commissioning; 6 months on electrical components and bought-out parts.
Installation & commissioning
Our engineering team handles foundation guidance, on-site installation, hydraulic commissioning, and operator training as part of every order.
Delivery time
6 - 8 weeks from order confirmation, subject to model and customisation.
Spare parts availability
Genuine spares for cylinders, seals, pumps, valves, and control components are stocked and dispatched within 48 hours across India.
After-sales service & AMC
Scheduled preventive maintenance visits, AMC (Annual Maintenance Contract) plans, and a dedicated helpline for breakdown support.
Customisation options
- Custom bale size to match your baler-to-furnace logistics
- Higher tonnage cylinders for denser bales
- Conveyor-fed automatic loading
- Special voltage/frequency for export orders
Frequently asked questions
Answers to what buyers most often ask before ordering this machine.
We manufacture the Triple Action Baling Press Machine from 150 Ton up to 630 Ton pressing force, so you can match tonnage to your scrap volume and bale density needs.
