What pressing force range is available?

It's manufactured from 250 Ton up to 600 Ton pressing force for high-volume yards and mills.

Do you provide installation and after-sales support?

Yes. Installation, commissioning, operator training and AMC plans are all part of our standard support.

Scrap Baling Press Machines

Heavy Duty Horizontal Hydraulic Scrap Baler Machine

Name: Heavy Duty Horizontal Hydraulic Scrap Baler Machine
Brand: Narshinga Industries

Scrap Baling Press Machines

Overview

Reinforced horizontal scrap baler built with heavier cylinders and frame for continuous high-tonnage, multi-shift baling.

The Heavy Duty Horizontal Hydraulic Scrap Baler Machine takes the standard horizontal baler platform and scales up cylinder bore, frame plate thickness and hydraulic pump capacity for yards running continuous, high-volume operation.

It's built to hold cycle times and bale consistency across long multi-shift runs on dense ferrous scrap without the wear rates that push a lighter machine into frequent maintenance.

Get a Quote Talk to an Engineer WhatsApp Us +91 74879 34510 Request Brochure

Machine images

Front View

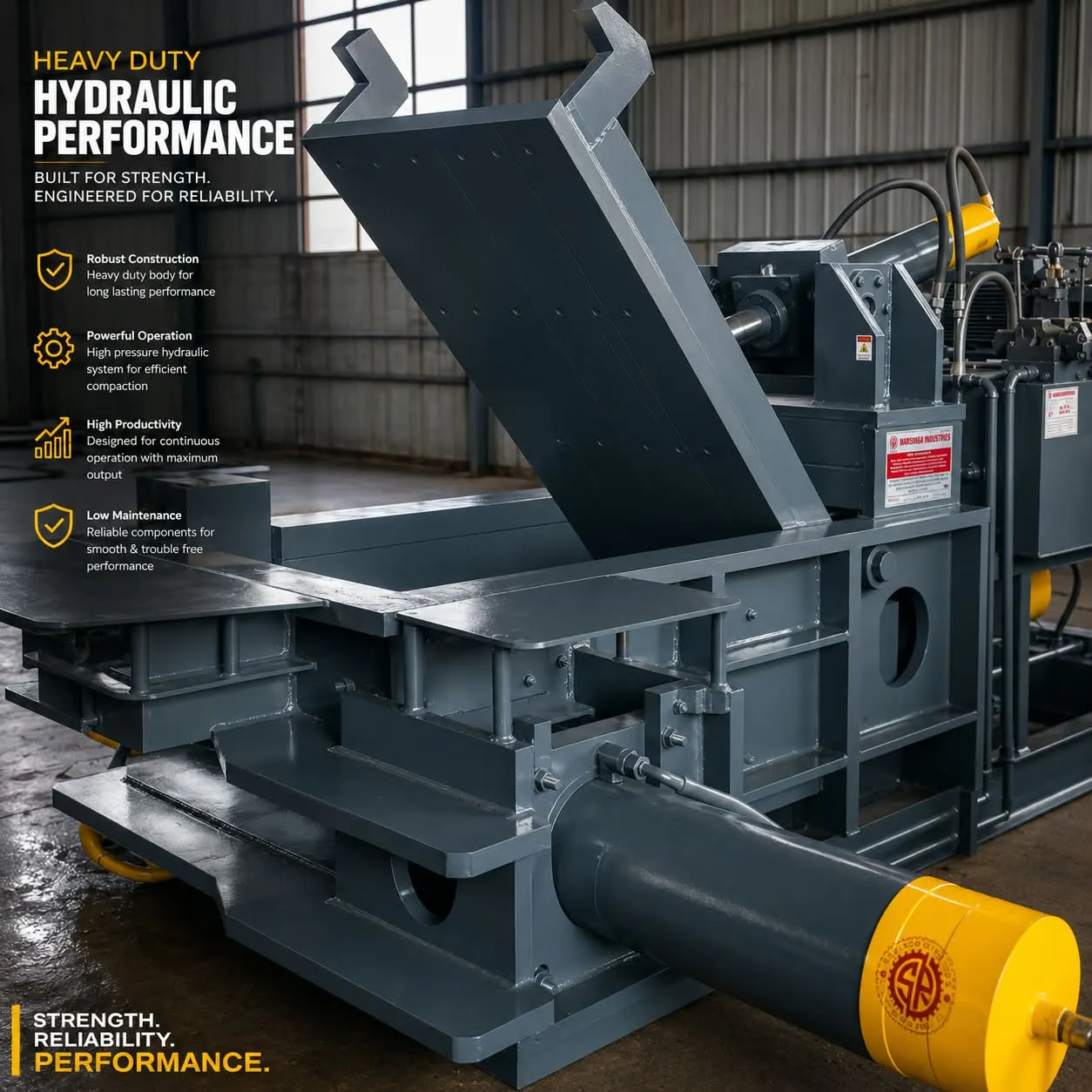

Side View

Available models & capacities

Model	Capacity
NSG HHB-250	250 Ton pressing force
NSG HHB-400	400 Ton pressing force
NSG HHB-600	600 Ton pressing force

Technical specifications

Pressing Force	250 - 600 Ton
Bale Size	500 x 450 x 450mm to 700 x 550 x 550mm
Feed Opening Size	1800 x 1100mm to 2400 x 1400mm
Cylinder Size	2 cylinders, Ø260mm - Ø400mm bore
Motor Power	35 HP - 100 HP
Hydraulic Pressure	260 - 330 kg/cm²
Pump Capacity	100 - 230 LPM
Oil Tank Capacity	600 - 1300 Litres
Cycle Time	60 - 110 seconds per bale
Machine Weight	12 - 26 Tons
Overall Dimensions	4.8m x 2.4m x 2.9m (approx., model dependent)
Power Supply	415V, 3 Phase, 50Hz
Control Panel	PLC-HMI touch screen control panel
Automation Type	Fully automatic, continuous multi-shift operation

Features

Heavy duty fabricated construction for continuous industrial use

High performance with fast, consistent cycle times

Low power consumption relative to output

Easy operation with operator-friendly controls

Low maintenance design with easy access to wear parts

Long service life, built for multi-shift operation

High productivity with minimal downtime

Safety features including guarding, interlocks & overload protection

Applications

High-tonnage MS/HMS scrap baling
Continuous multi-shift yard operation
Structural offcut & sheet scrap baling
Steel mill-adjacent scrap consolidation

Industries served

Steel mills & re-rolling mills
Large scrap recycling yards
Foundries
Ship-breaking yards

Standard accessories

Heavy-duty hydraulic power pack
PLC-HMI control panel
Reinforced safety guarding & interlocks
Oil cooling system
Bale ejection trolley

Optional accessories

Conveyor feeding system
Bale weighing system
Automatic lubrication system
Redundant pump for continuous uptime

Media & documentation

Working video

Available on request

Technical drawing

Available on request

Machine brochure (PDF)

Available on request

Warranty

12 months on machine and hydraulic system; 6 months on electricals.

Installation & commissioning

Foundation guidance, on-site installation, hydraulic commissioning and operator training included.

Delivery time

7 - 10 weeks from order confirmation.

Spare parts availability

Cylinders, seals, pumps, valves and control components stocked for quick dispatch.

After-sales service & AMC

AMC plans, preventive maintenance visits and breakdown support.

Customisation options

Custom chamber size for higher-volume output
Redundant pump configuration for continuous uptime
Export-spec voltage/frequency

Frequently asked questions

Answers to what buyers most often ask before ordering this machine.

It uses larger-bore cylinders, a reinforced frame and higher pump capacity to sustain continuous multi-shift operation at higher tonnage without accelerated wear.
