Automatic Vertical Hydraulic Baling Press Machine
Overview
PLC-controlled vertical baler with automatic door and ejection sequencing for continuous conveyor-fed operation.
The Automatic Vertical Hydraulic Baling Press Machine adds PLC-controlled door locking and automatic ejection sequencing to the standard vertical baler platform, so it can run continuously from a hopper or conveyor feed without an operator latching the chamber between cycles.
It suits recyclers and processors who've outgrown manual vertical balers and need consistent, hands-off cycle repetition through a shift.
Machine images
Front View

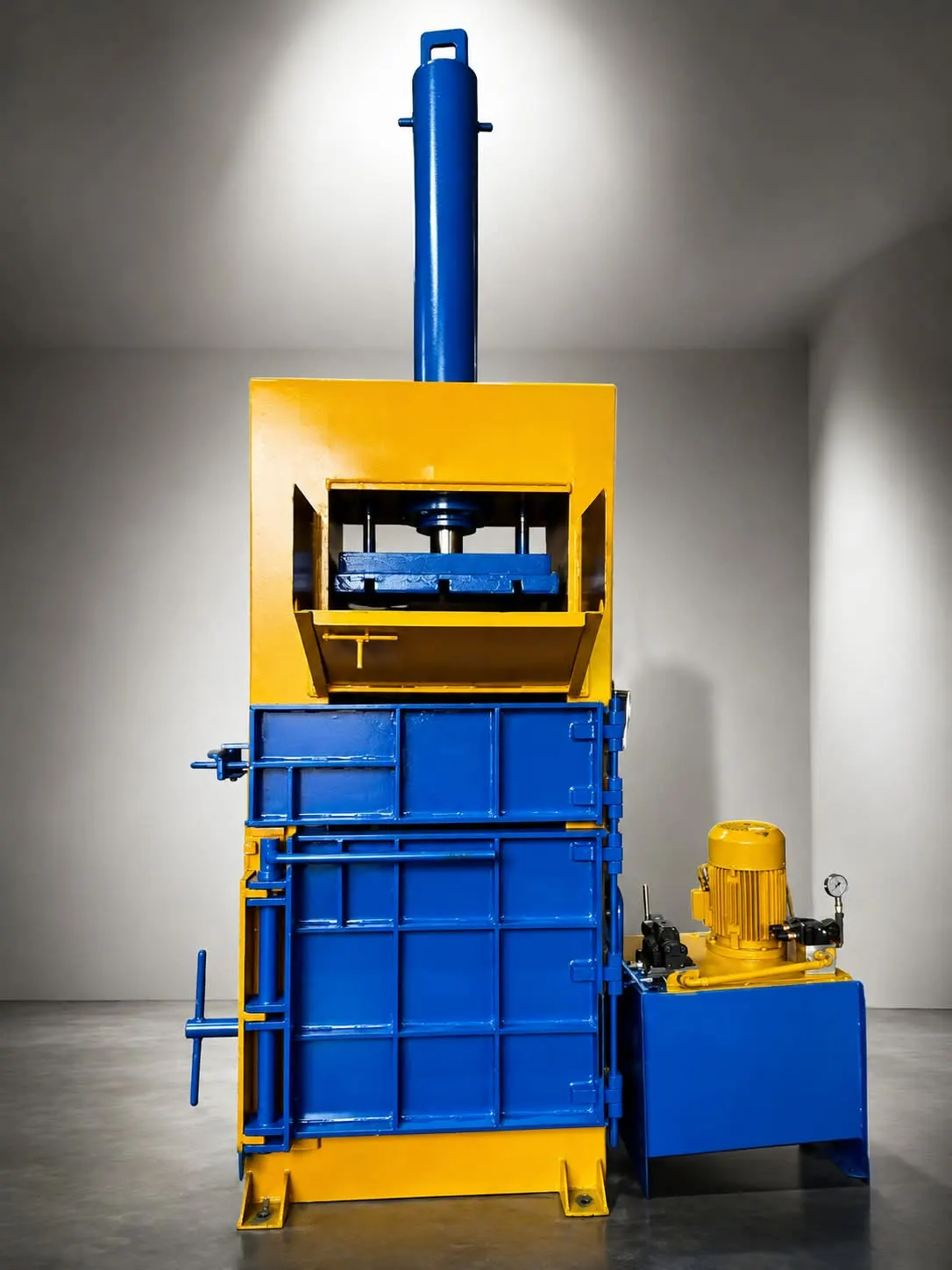

Side View
Rear View
Available models & capacities
| Model | Capacity |
|---|---|
| NSG AVB-30 | 30 Ton pressing force |
| NSG AVB-50 | 50 Ton pressing force |
| NSG AVB-75 | 75 Ton pressing force |
Technical specifications
| Pressing Force | 30 - 75 Ton |
|---|---|
| Bale Size | 900 x 800 x 800mm to 1100 x 1000 x 1000mm |
| Feed Opening Size | 1300 x 1000mm to 1600 x 1200mm |
| Cylinder Size | Single cylinder, Ø160mm - Ø250mm bore |
| Motor Power | 12.5 HP - 30 HP |
| Hydraulic Pressure | 190 - 250 kg/cm² |
| Pump Capacity | 45 - 100 LPM |
| Oil Tank Capacity | 200 - 400 Litres |
| Cycle Time | 35 - 55 seconds per bale |
| Machine Weight | 3 - 7 Tons |
| Overall Dimensions | 2m x 1.8m x 3.4m (approx., model dependent) |
| Power Supply | 415V, 3 Phase, 50Hz |
| Control Panel | PLC-HMI touch screen control panel with automatic door |
| Automation Type | Fully automatic, hopper/conveyor-fed continuous operation |
Features
Applications
- Continuous plastic & PET bottle baling
- Hopper-fed cardboard baling
- MRF (material recovery facility) processing
- High-frequency recyclable baling
Industries served
- Material recovery facilities
- Plastic recycling plants
- Waste management companies
- Beverage & FMCG recycling programs
Standard accessories
- Hydraulic power pack
- PLC-HMI touch screen control panel
- Automatic hydraulic door lock
- Safety photo-eye guarding
- Bale ejection door
Optional accessories
- Hopper/conveyor infeed system
- Automatic strapping integration
- Bale weighing system
- Remote diagnostics module
Media & documentation
Working video
Available on request
Technical drawing
Available on request
Machine brochure (PDF)
Available on request
Warranty
12 months on machine and hydraulic system; 6 months on electricals and PLC components.
Installation & commissioning
Installation, PLC commissioning, hopper/conveyor integration and operator training handled by our team.
Delivery time
5 - 7 weeks from order confirmation.
Spare parts availability
Cylinder seals, pumps, valves, PLC and control components stocked for quick dispatch.
After-sales service & AMC
AMC plans, preventive maintenance visits, PLC diagnostics support and helpline.
Customisation options
- Larger chamber for higher-volume output
- Hopper/conveyor-integrated automatic feeding
- Export-spec voltage/frequency
Frequently asked questions
Answers to what buyers most often ask before ordering this machine.
This model adds PLC-controlled automatic door locking and ejection sequencing so it can run continuously from a hopper or conveyor without an operator latching the door each cycle.
