Double Box Hydraulic Baling Press Machine
Overview
Twin-chamber baler that runs two independent pressing boxes off one power pack, doubling throughput without doubling floor space.
The Double Box Hydraulic Baling Press Machine pairs two separate pressing chambers on a single hydraulic power pack, so one box can eject or reload while the other is mid-cycle, keeping the line moving with fewer idle gaps.
It's a practical way to raise throughput for operations that don't have room for two separate baler installations but need more output than a single-chamber press delivers.
Machine images
Front View

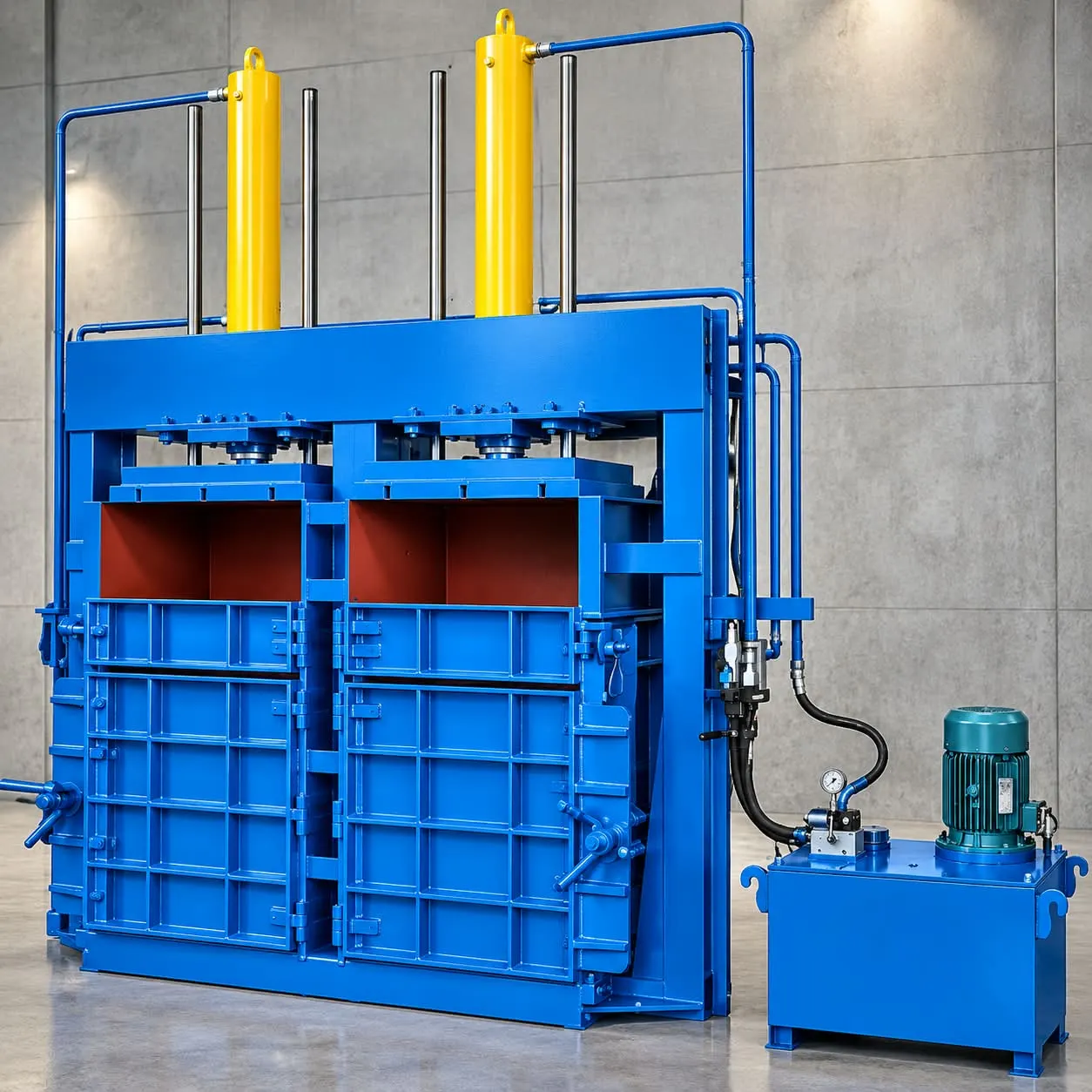

Side View

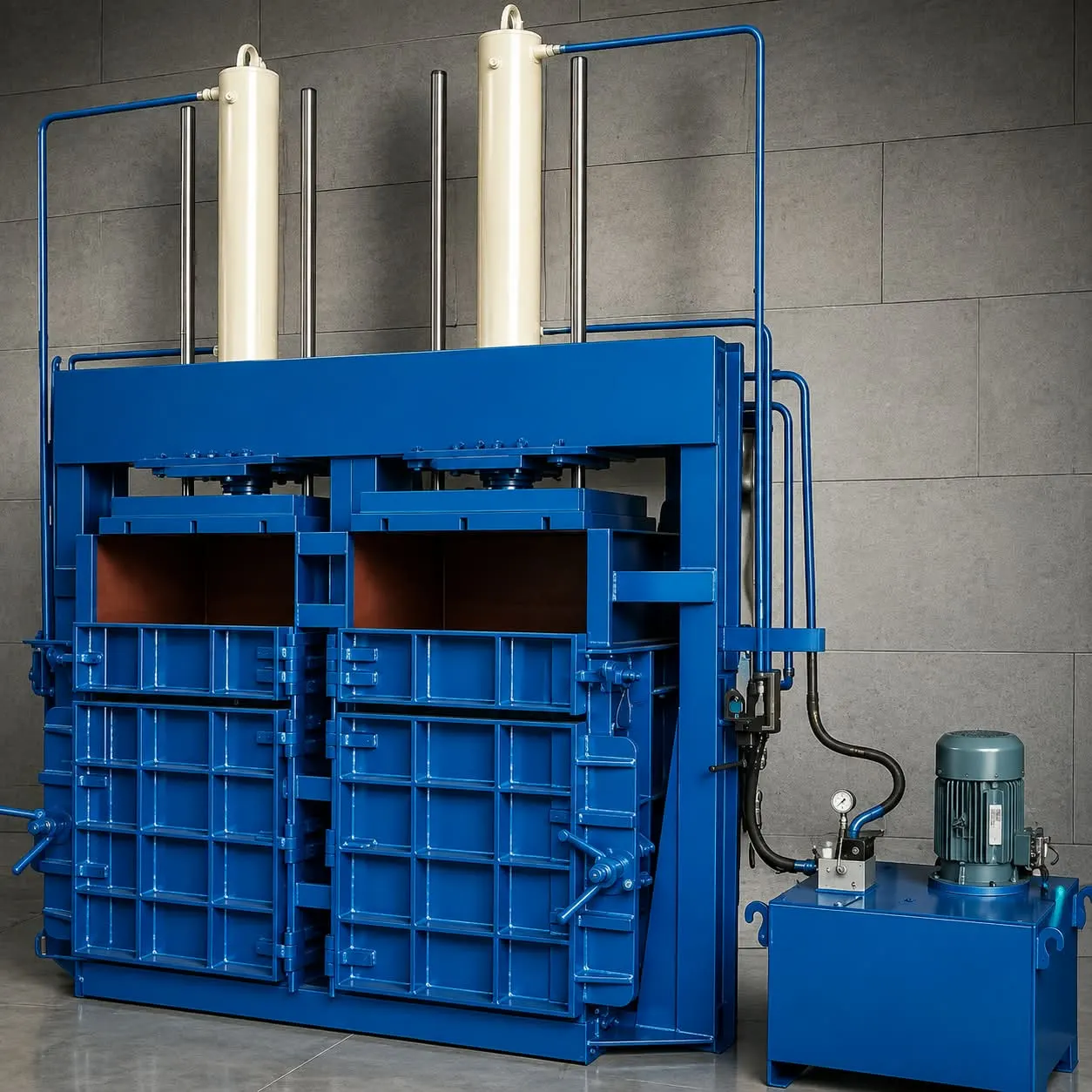

Rear View
Available models & capacities
| Model | Capacity |
|---|---|
| NSG DBB-60 | 60 Ton pressing force per box |
| NSG DBB-100 | 100 Ton pressing force per box |
| NSG DBB-150 | 150 Ton pressing force per box |
Technical specifications
| Pressing Force | 60 - 150 Ton per chamber |
|---|---|
| Bale Size | 600 x 500 x 500mm to 800 x 600 x 600mm (per chamber) |
| Feed Opening Size | 1400 x 900mm per chamber |
| Cylinder Size | 2 independent cylinders, Ø170mm - Ø260mm bore |
| Motor Power | 20 HP - 50 HP (shared power pack) |
| Hydraulic Pressure | 210 - 270 kg/cm² |
| Pump Capacity | 70 - 150 LPM |
| Oil Tank Capacity | 350 - 700 Litres |
| Cycle Time | 40 - 65 seconds per bale (per chamber) |
| Machine Weight | 6 - 13 Tons |
| Overall Dimensions | 3.6m x 2.6m x 2.6m (approx., model dependent, both chambers) |
| Power Supply | 415V, 3 Phase, 50Hz |
| Control Panel | PLC control panel with independent chamber sequencing |
| Automation Type | Semi-automatic / fully automatic, dual-chamber operation |
Features
Applications
- High-throughput plastic & paper baling
- Dual-stream mixed material baling
- MRF processing with two feed lines
- Space-constrained high-volume operations
Industries served
- Material recovery facilities
- Plastic & paper recycling plants
- Waste management companies
- Retail & warehouse consolidation centres
Standard accessories
- Shared hydraulic power pack
- PLC control panel with dual-chamber sequencing
- Safety guarding on both chambers
- Independent bale ejection doors
- Manual strapping guides
Optional accessories
- Dual conveyor infeed system
- Automatic strapping integration
- Bale weighing system on each chamber
Media & documentation
Working video
Available on request
Technical drawing
Available on request
Machine brochure (PDF)
Available on request
Warranty
12 months on machine and hydraulic system; 6 months on electricals.
Installation & commissioning
Installation, dual-chamber commissioning and operator training handled by our team.
Delivery time
6 - 8 weeks from order confirmation.
Spare parts availability
Cylinders, seals, pumps, valves and control components stocked for quick dispatch.
After-sales service & AMC
AMC plans, preventive maintenance visits and breakdown support.
Customisation options
- Independent chamber sizing for different material streams
- Higher tonnage per chamber for denser bales
- Dual conveyor-integrated automatic feeding
Frequently asked questions
Answers to what buyers most often ask before ordering this machine.
With two independent chambers on one power pack, one box can be ejecting or reloading while the other is mid-press, cutting the idle time between bales compared to a single chamber.
