Double Action Baling Press Machine
.webp&w=3840&q=75)
Overview
Twin-cylinder hydraulic baler that compresses and ejects loose scrap and light-gauge material into stackable bales, built for high-throughput yards.
The Double Action Baling Press Machine uses two hydraulic cylinders — a main pressing ram and a separate ejection ram — to compact bulky, low-density scrap into manageable bales faster than a single-action press.
It's the workhorse choice for yards handling high volumes of light melting scrap, sheet cuttings, and drums where cycle speed matters as much as bale density.
Machine images
Front View
.webp&w=3840&q=75)

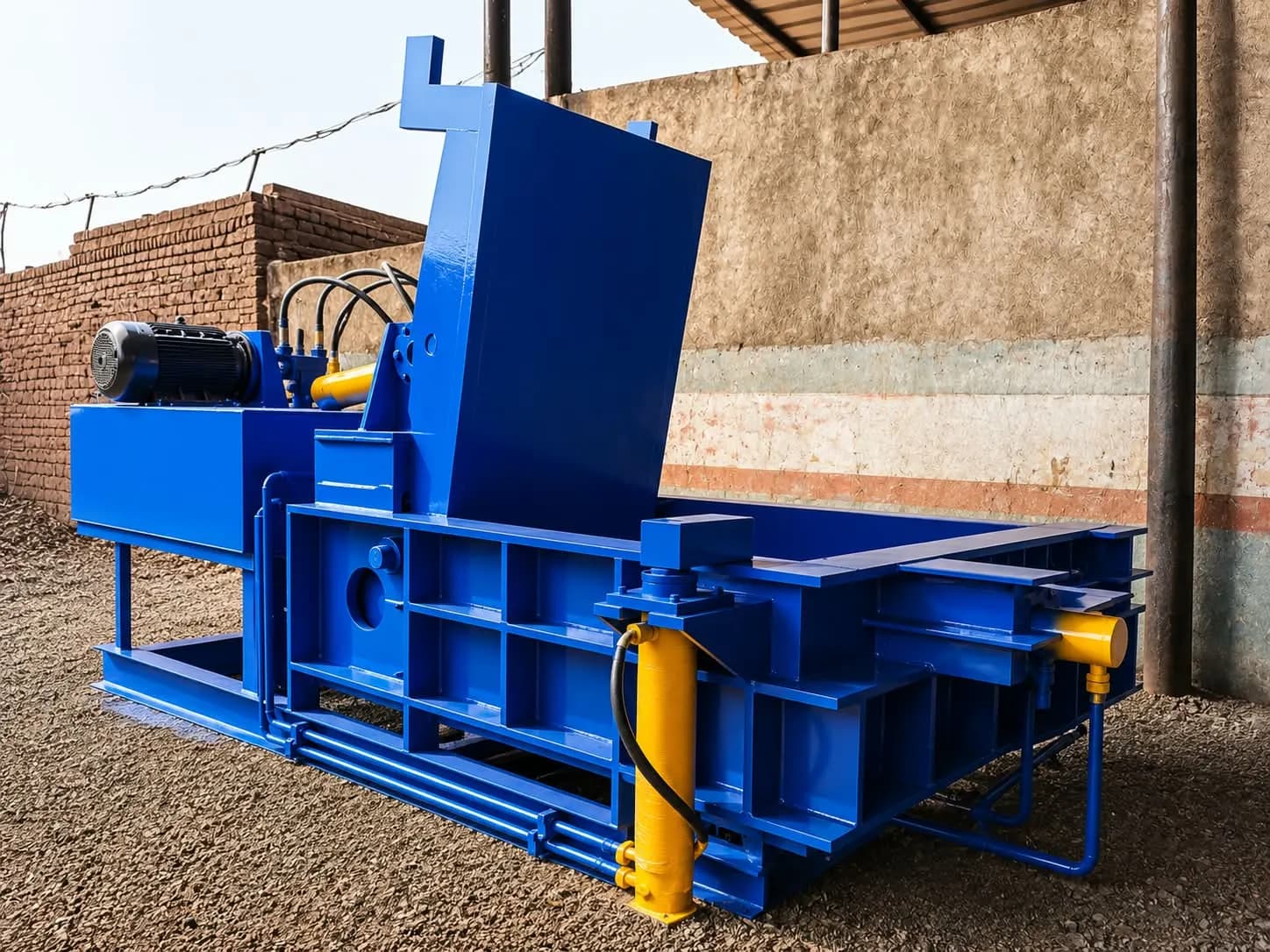

Side View
.webp&w=3840&q=75)

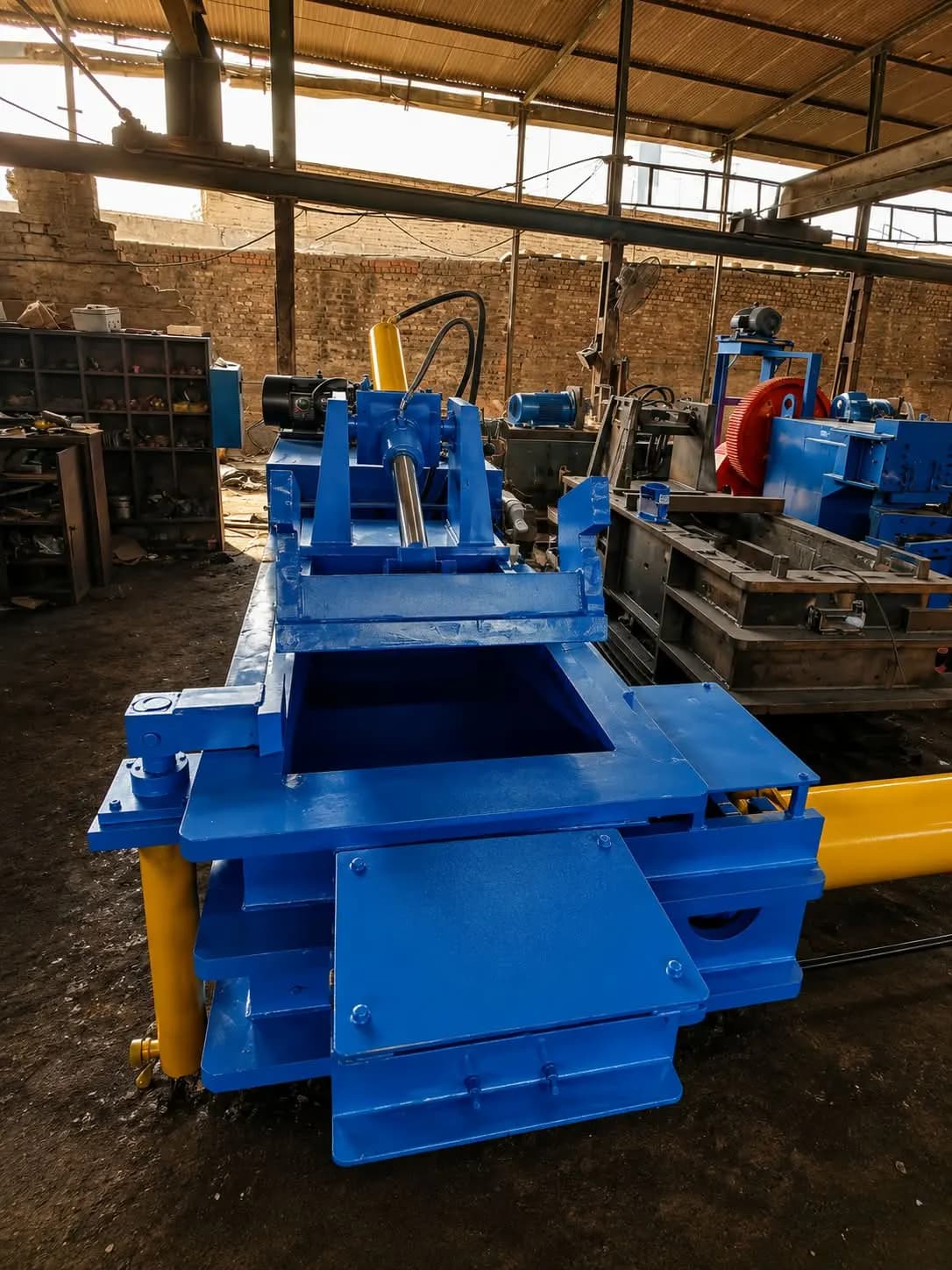

Rear View
Available models & capacities
| Model | Capacity |
|---|---|
| NSG DAP-100 | 100 Ton pressing force |
| NSG DAP-200 | 200 Ton pressing force |
| NSG DAP-350 | 350 Ton pressing force |
| NSG DAP-500 | 500 Ton pressing force |
Technical specifications
| Pressing Force | 100 - 500 Ton |
|---|---|
| Bale Size | 400 x 400 x 400 mm to 700 x 500 x 500 mm |
| Feed Opening Size | 1500 x 900 mm to 2200 x 1300 mm |
| Cylinder Size | 2 cylinders - Ø180mm to Ø350mm bore (main & ejection) |
| Motor Power | 20 HP - 90 HP |
| Hydraulic Pressure | 210 - 300 kg/cm² |
| Pump Capacity | 70 - 220 LPM |
| Oil Tank Capacity | 400 - 1200 Litres |
| Cycle Time | 45 - 90 seconds per bale |
| Machine Weight | 6 - 22 Tons |
| Overall Dimensions | 4.2m x 2m x 2.6m (approx., model dependent) |
| Power Supply | 415V, 3 Phase, 50Hz |
| Control Panel | Relay/PLC control panel with push-button station |
| Automation Type | Manual-fed semi-automatic; automatic conveyor feed optional |
Features
Applications
- Light melting scrap (LMS) baling
- Drum & barrel compaction
- Sheet & coil end cuttings
- Aluminium & non-ferrous scrap
- Loose scrap consolidation for transport
Industries served
- Scrap trading yards
- Steel mills
- Non-ferrous recyclers
- Packaging & drum manufacturers
- Ship-breaking yards
Standard accessories
- Hydraulic power pack
- Control panel with push-button station
- Safety door interlocks
- Oil cooling unit
- Bale slide-out ramp
Optional accessories
- Motorised conveyor infeed
- Bale strapping station
- PLC-HMI upgrade
- Extra oil cooling capacity for continuous duty
- Weighing scale integration
Media & documentation
Working video
Available on request
Technical drawing
Available on request
Machine brochure (PDF)
Available on request
Warranty
12 months on the complete machine and hydraulic system from the date of commissioning; 6 months on electrical components and bought-out parts.
Installation & commissioning
Our engineering team handles foundation guidance, on-site installation, hydraulic commissioning, and operator training as part of every order.
Delivery time
5 - 7 weeks from order confirmation.
Spare parts availability
Genuine spares for cylinders, seals, pumps, valves, and control components are stocked and dispatched within 48 hours across India.
After-sales service & AMC
Scheduled preventive maintenance visits, AMC plans, and a dedicated helpline for breakdown support.
Customisation options
- Wider feed opening for bulky scrap
- Higher-capacity motor for continuous multi-shift operation
- Custom chamber length for specific bale sizes
Frequently asked questions
Answers to what buyers most often ask before ordering this machine.
We manufacture the Double Action Baling Press Machine from 100 Ton up to 500 Ton pressing force to suit different scrap volumes and cycle speed requirements.
