What kind of scrap benefits most from this machine?

Light-gauge, springy or bulky scrap that resists compaction sees the biggest density improvement, which translates directly into better freight and export economics.

Do you provide installation and after-sales support?

Yes. Installation, commissioning, operator training and AMC plans are all part of our standard support.

Scrap Baling Press Machines

Triple Compression Hydraulic Scrap Baler Machine

Name: Triple Compression Hydraulic Scrap Baler Machine
Brand: Narshinga Industries

Scrap Baling Press Machines

Overview

Three-stage compression baler that maximises bale density for scrap, giving the highest weight-to-volume ratio in our baler range.

The Triple Compression Hydraulic Scrap Baler Machine runs material through three sequenced compression stages before final ejection, pushing bale density beyond what a double compression press can achieve.

It's aimed at operations where every additional kilogram per bale directly improves freight and export economics, particularly for light-gauge and springy scrap that resists compaction.

Get a Quote Talk to an Engineer WhatsApp Us +91 74879 34510 Request Brochure

Machine images

Front View

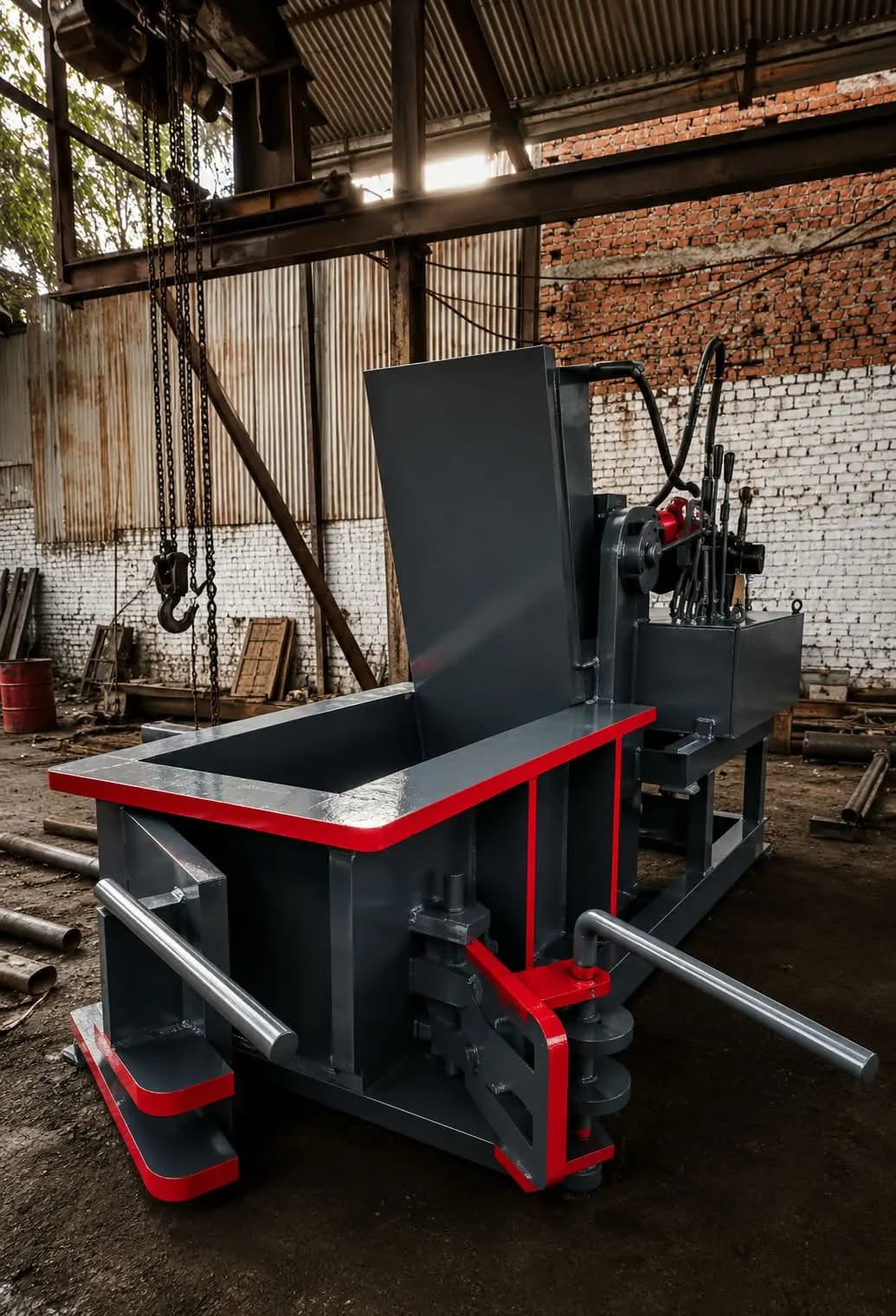

Side View

Available models & capacities

Model	Capacity
NSG TCB-200	200 Ton total pressing force
NSG TCB-350	350 Ton total pressing force
NSG TCB-500	500 Ton total pressing force

Technical specifications

Pressing Force	200 - 500 Ton (combined three-stage)
Bale Size	400 x 400 x 400mm to 600 x 500 x 500mm
Feed Opening Size	1600 x 1000mm to 2200 x 1300mm
Cylinder Size	Three-stage cylinders, Ø190mm - Ø350mm bore
Motor Power	25 HP - 80 HP
Hydraulic Pressure	250 - 320 kg/cm²
Pump Capacity	85 - 200 LPM
Oil Tank Capacity	500 - 1000 Litres
Cycle Time	65 - 110 seconds per bale
Machine Weight	9 - 20 Tons
Overall Dimensions	4.6m x 2.2m x 2.7m (approx., model dependent)
Power Supply	415V, 3 Phase, 50Hz
Control Panel	PLC control panel with sequenced three-stage cycle
Automation Type	Semi-automatic / fully automatic three-stage compression

Features

Heavy duty fabricated construction for continuous industrial use

High performance with fast, consistent cycle times

Low power consumption relative to output

Easy operation with operator-friendly controls

Low maintenance design with easy access to wear parts

Long service life, built for multi-shift operation

High productivity with minimal downtime

Safety features including guarding, interlocks & overload protection

Applications

Maximum-density MS/HMS scrap baling
Light-gauge sheet & turnings densification
Export-grade bale preparation
Freight-optimised scrap consolidation

Industries served

Scrap export yards
Steel mills
Recycling processors
Ship-breaking yards

Standard accessories

Hydraulic power pack
PLC three-stage sequencing control
Safety guarding & interlocks
Oil cooler
Bale ejection trolley

Optional accessories

Conveyor feeding system
PLC-HMI touch screen upgrade
Bale weighing system
Automatic lubrication system

Media & documentation

Working video

Available on request

Technical drawing

Available on request

Machine brochure (PDF)

Available on request

Warranty

12 months on machine and hydraulic system; 6 months on electricals.

Installation & commissioning

Foundation guidance, on-site installation, hydraulic commissioning and operator training included.

Delivery time

7 - 9 weeks from order confirmation.

Spare parts availability

Cylinders, seals, pumps, valves and control components stocked for quick dispatch.

After-sales service & AMC

AMC plans, preventive maintenance visits and breakdown support.

Customisation options

Custom bale density target for export logistics
Higher tonnage cylinders for denser bales
Conveyor-fed automatic loading

Frequently asked questions

Answers to what buyers most often ask before ordering this machine.

A third sequenced pressing stage squeezes out additional air and voids beyond what a two-stage press achieves, giving the highest bale density in our baler range.
