Hydraulic Alligator Scrap Shear Machine
Overview
Hydraulic alligator-jaw shear that bites through structural sections, pipe, and rod scrap in a single clamping stroke.
The Hydraulic Alligator Scrap Shear Machine uses a hinged, jaw-like blade action powered by a single hydraulic cylinder to clamp and cut structural steel, angles, pipe, and rod scrap down to furnace-ready lengths.
The alligator design keeps the moving blade close to the fixed blade through the full stroke, giving a clean shear on mixed cross-sections without the material sliding out of the jaw.
Machine images
Front View

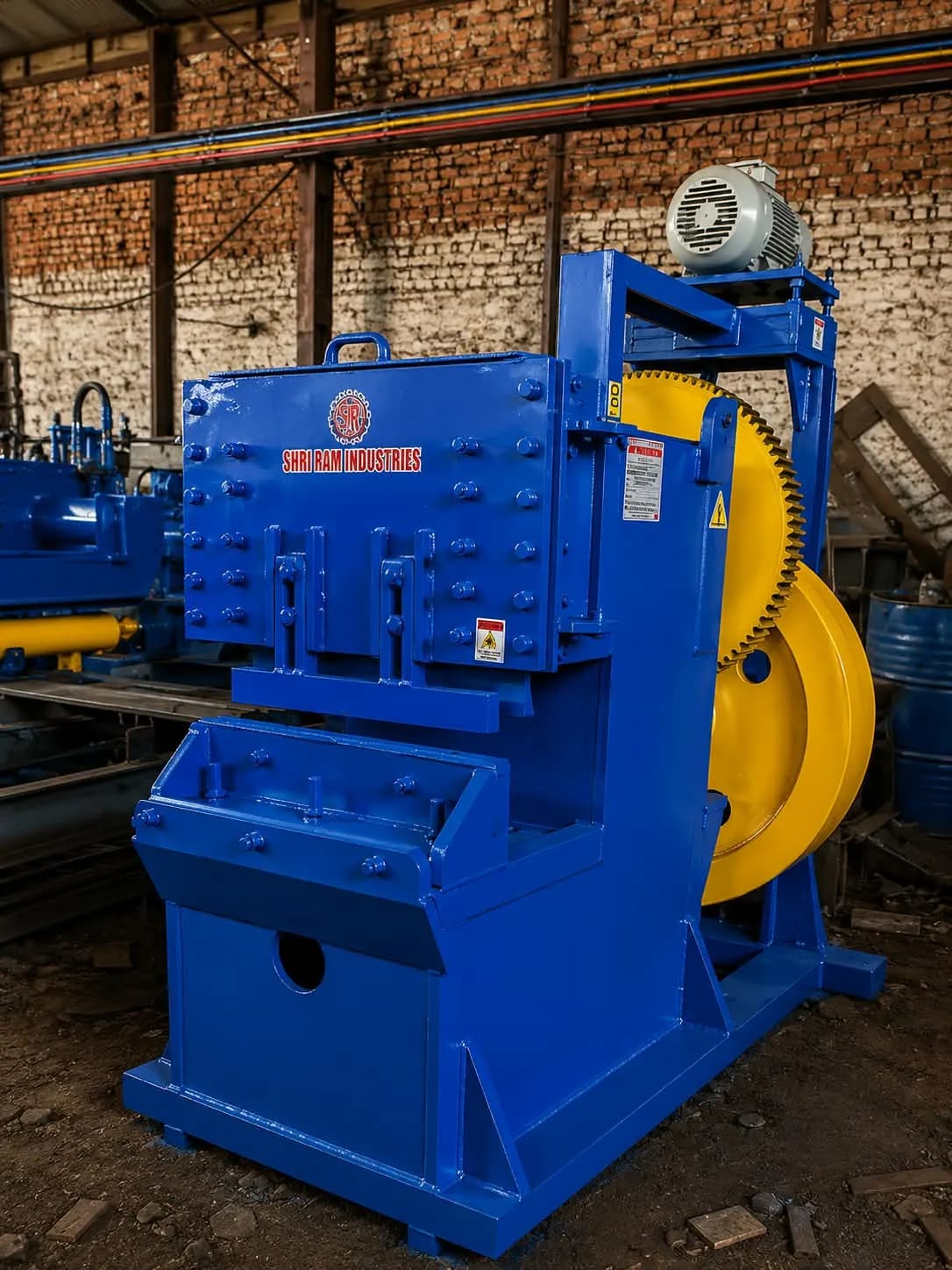

Side View

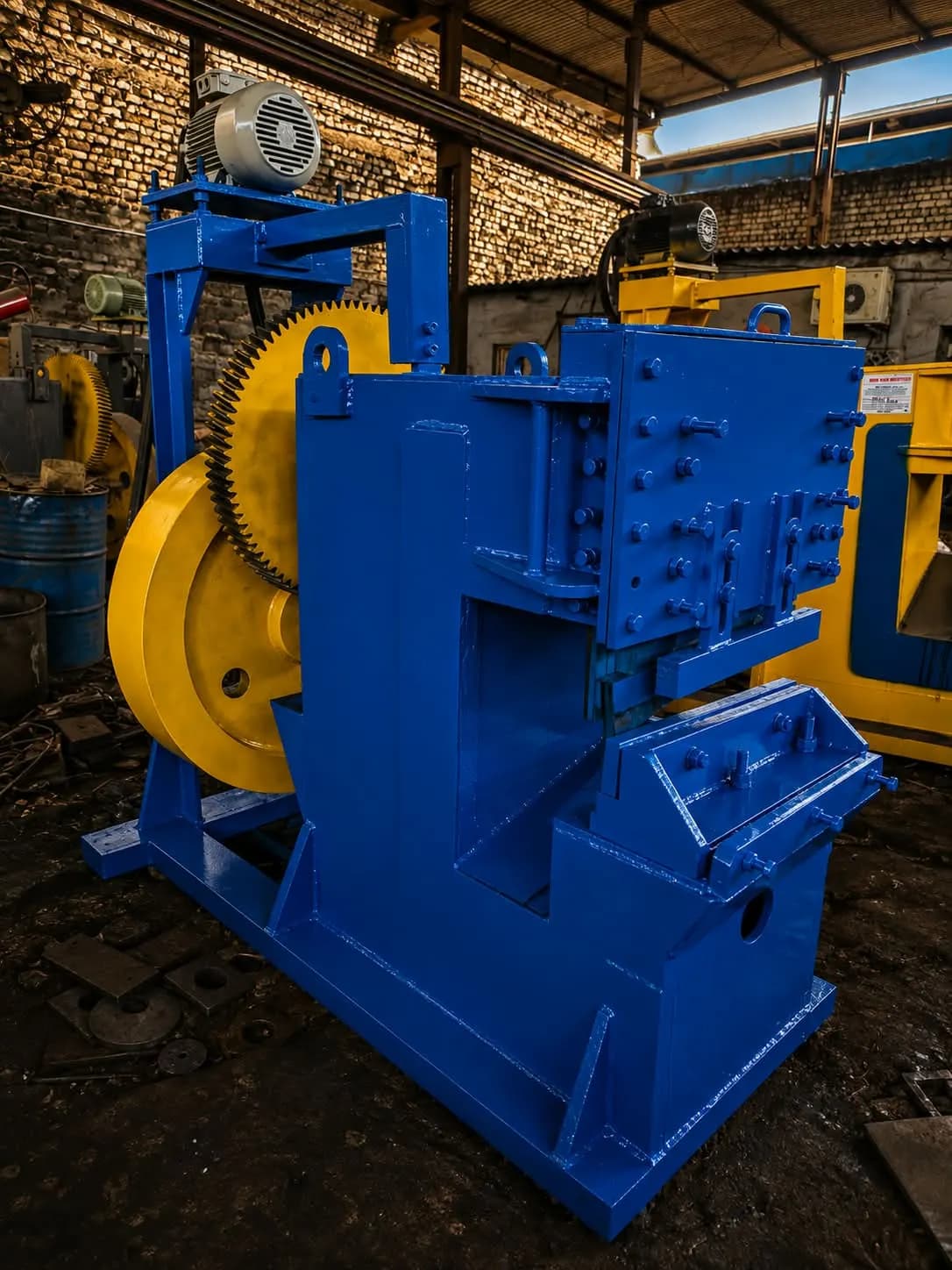

Rear View

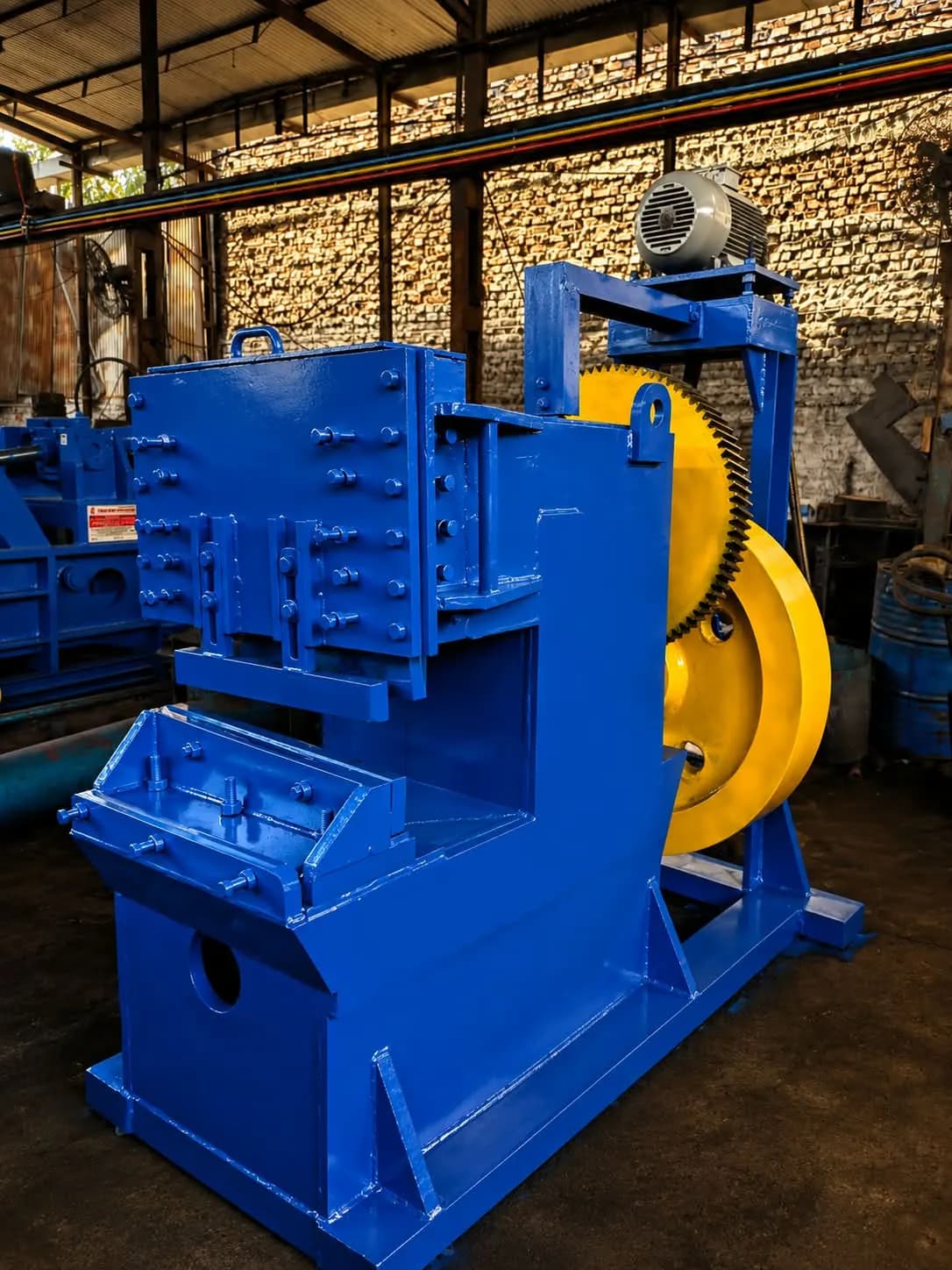

Working Photo
View 5
View 6

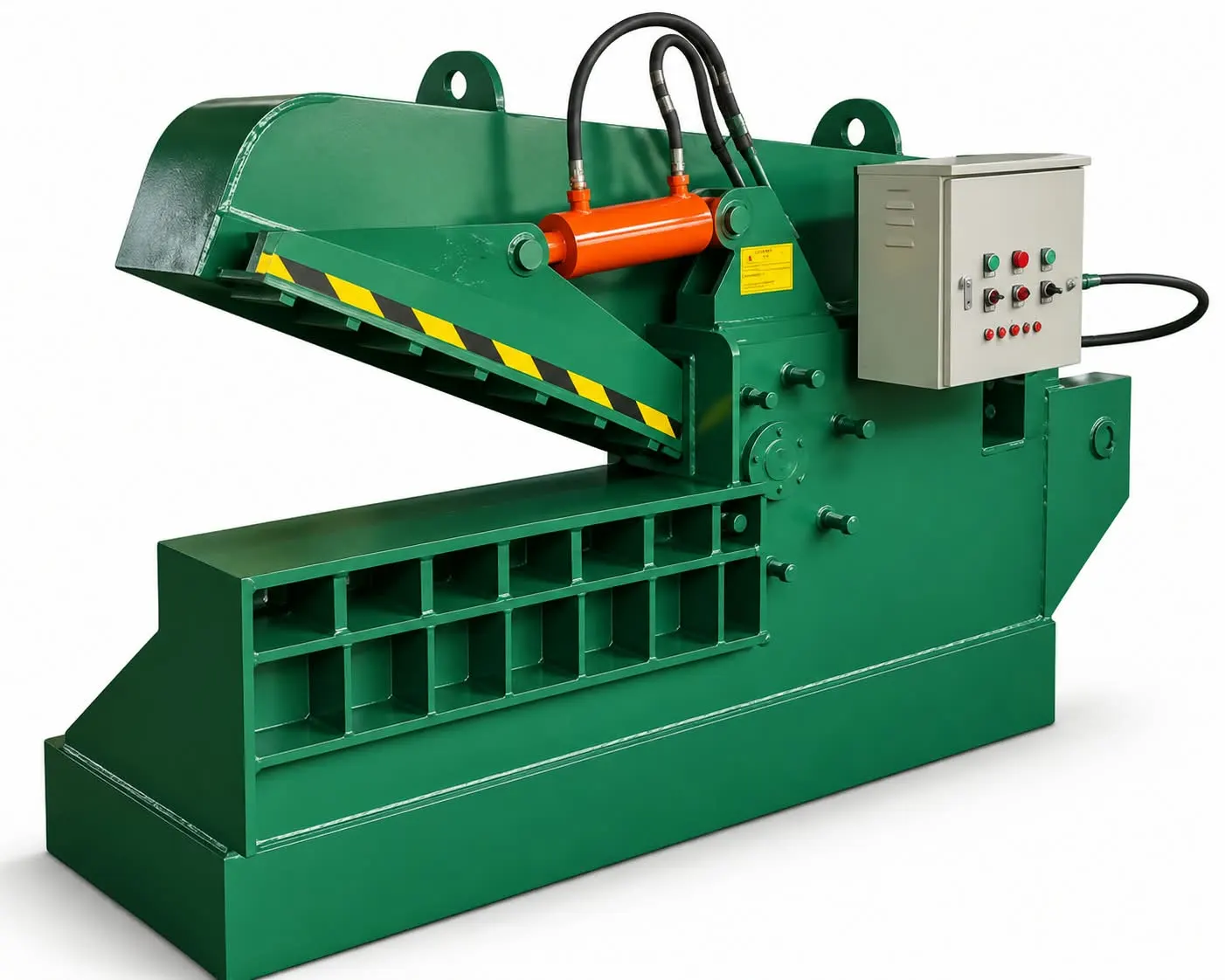

View 7
.webp&w=3840&q=75)

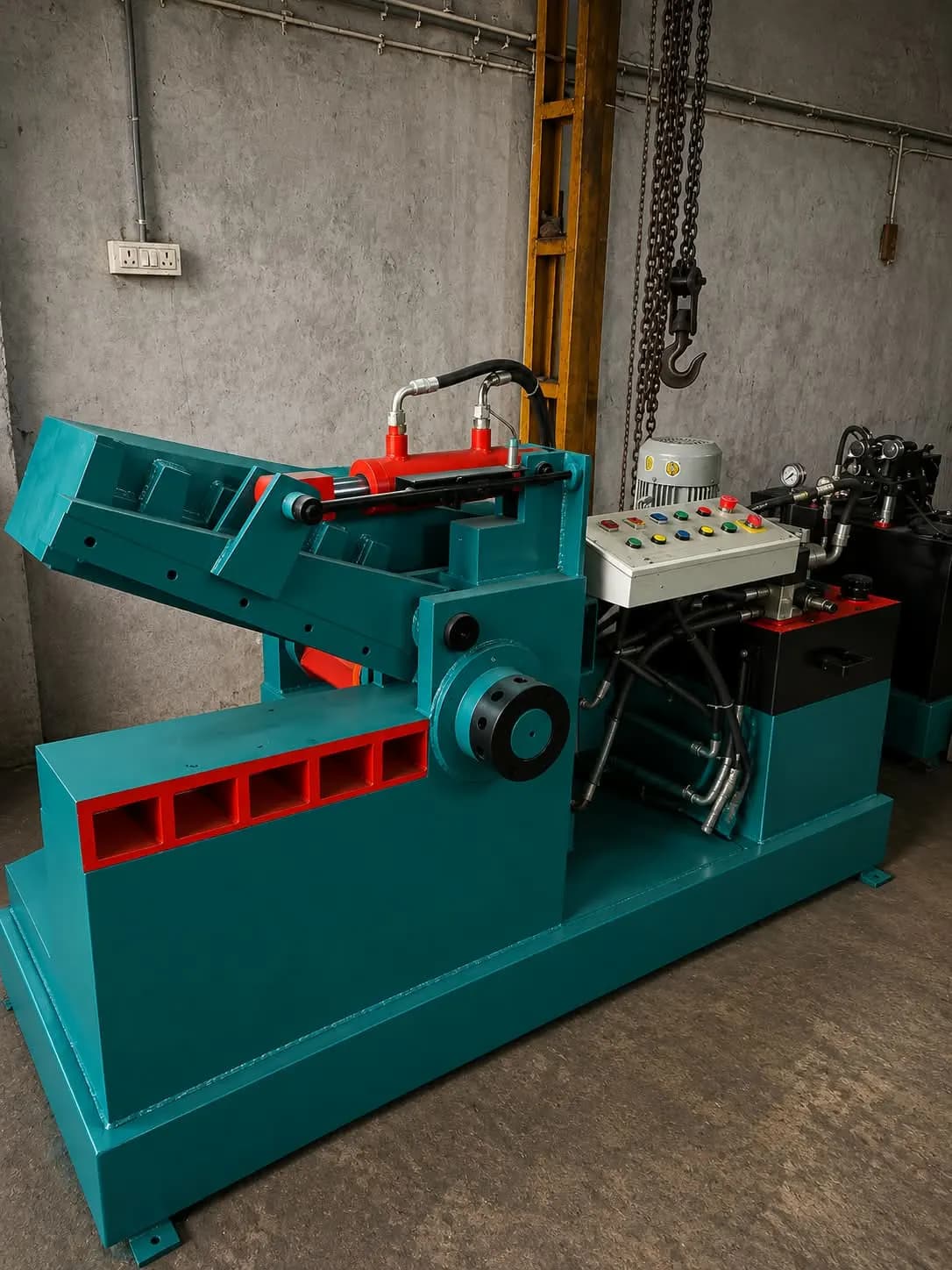

View 8
Available models & capacities
| Model | Capacity |
|---|---|
| NSG HAS-120 | 120 Ton cutting force |
| NSG HAS-180 | 180 Ton cutting force |
| NSG HAS-250 | 250 Ton cutting force |
Technical specifications
| Cutting Capacity | Up to 120mm - 200mm round bar / structural section (model dependent) |
|---|---|
| Feed Opening Size | 400 x 300mm to 600 x 450mm jaw throat |
| Cylinder Size | Single cutting cylinder, Ø200mm - Ø320mm bore |
| Motor Power | 15 HP - 40 HP |
| Hydraulic Pressure | 230 - 300 kg/cm² |
| Pump Capacity | 50 - 110 LPM |
| Oil Tank Capacity | 200 - 450 Litres |
| Cycle Time | 3 - 6 seconds per cut |
| Machine Weight | 1.8 - 5.5 Tons |
| Overall Dimensions | 2.2m x 1.3m x 1.6m (approx., model dependent) |
| Power Supply | 415V, 3 Phase, 50Hz |
| Control Panel | Foot-pedal / push-button hydraulic control panel |
| Automation Type | Manual-fed, single-stroke hydraulic operation |
Features
Applications
- Structural steel & angle cutting
- Pipe & tube sectioning
- Rod & bar scrap sizing
- Mixed light scrap reduction for furnace charging
Industries served
- Scrap processing yards
- Steel re-rolling mills
- Fabrication workshops
- Demolition scrap dealers
Standard accessories
- Hydraulic power pack
- Alligator jaw blade set
- Foot-pedal control station
- Safety guarding
- Base mounting frame
Optional accessories
- Extra blade sets for different section profiles
- Skid-mounted mobile chassis
- Remote foot-pedal extension
- Higher-tonnage cylinder upgrade
Media & documentation
Working video
Available on request
Technical drawing
Available on request
Machine brochure (PDF)
Available on request
Warranty
12 months on machine and hydraulic system; blades covered against manufacturing defects, wear excluded.
Installation & commissioning
Foundation guidance, on-site erection, hydraulic commissioning and operator training included.
Delivery time
4 - 6 weeks from order confirmation.
Spare parts availability
Alligator blades, hydraulic seals, hoses and pins stocked for fast dispatch.
After-sales service & AMC
AMC plans, blade sharpening/replacement service, and on-call breakdown support.
Customisation options
- Custom jaw throat size for larger sections
- Higher tonnage cylinder for thicker scrap
- Skid-mounted version for yard relocation
Frequently asked questions
Answers to what buyers most often ask before ordering this machine.
Depending on the model, it cuts round bar and structural sections up to roughly 120mm-200mm through the jaw throat in a single clamping stroke.
