Heavy Duty Hydraulic Scrap Shear Machine
Overview
High-tonnage hydraulic shear built for thick structural sections, plate offcuts and dense mixed scrap that lighter shears can't handle.
The Heavy Duty Hydraulic Scrap Shear Machine steps up cylinder bore and frame mass over our standard alligator shear to take on thicker structural beams, heavy plate, and dense mixed scrap without losing blade alignment cycle after cycle.
A reinforced fabricated frame absorbs the higher shock loading that comes with heavier sections, keeping the machine stable through continuous multi-shift use.
Machine images
Front View
.webp&w=3840&q=75)

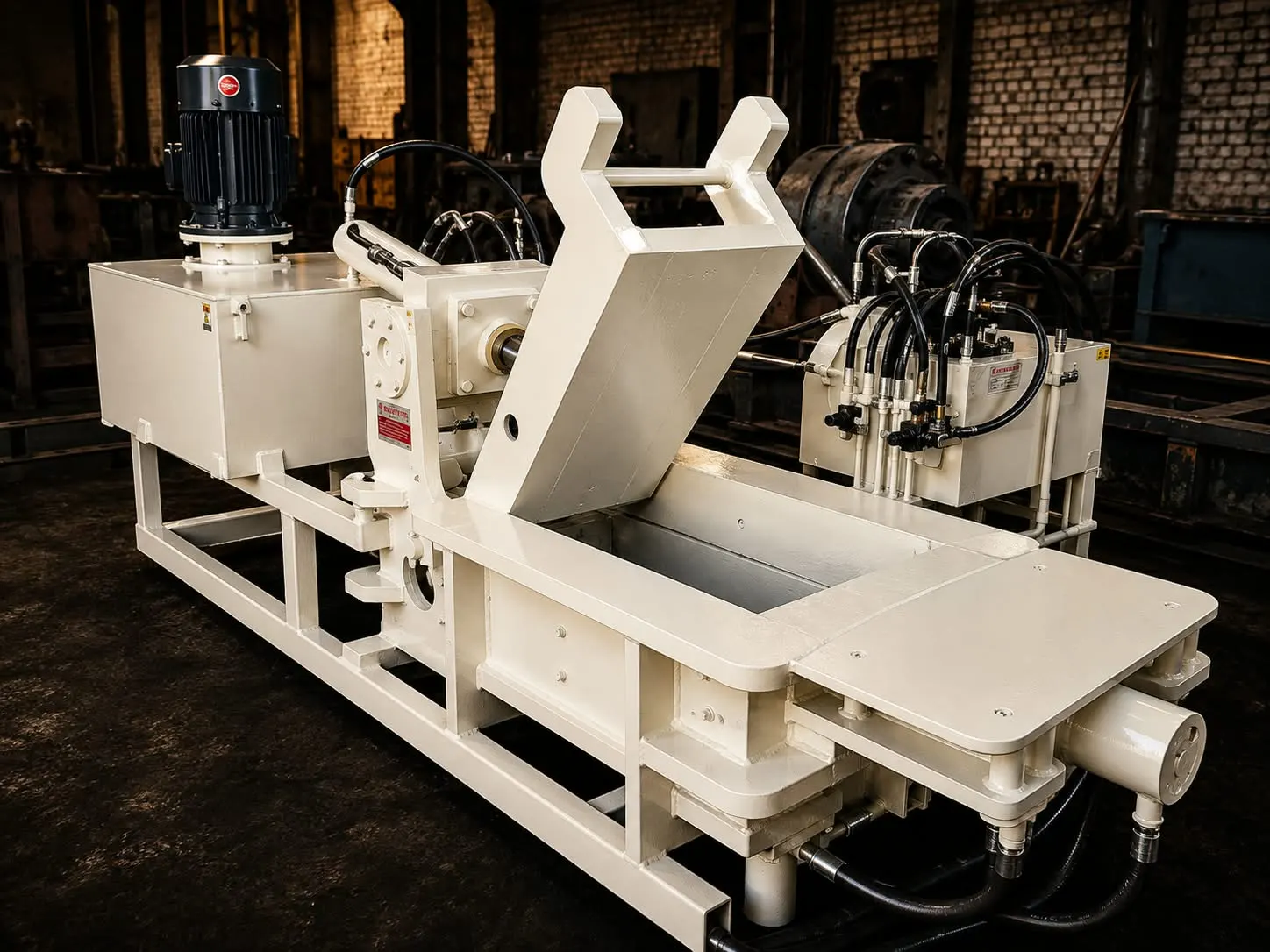

Side View

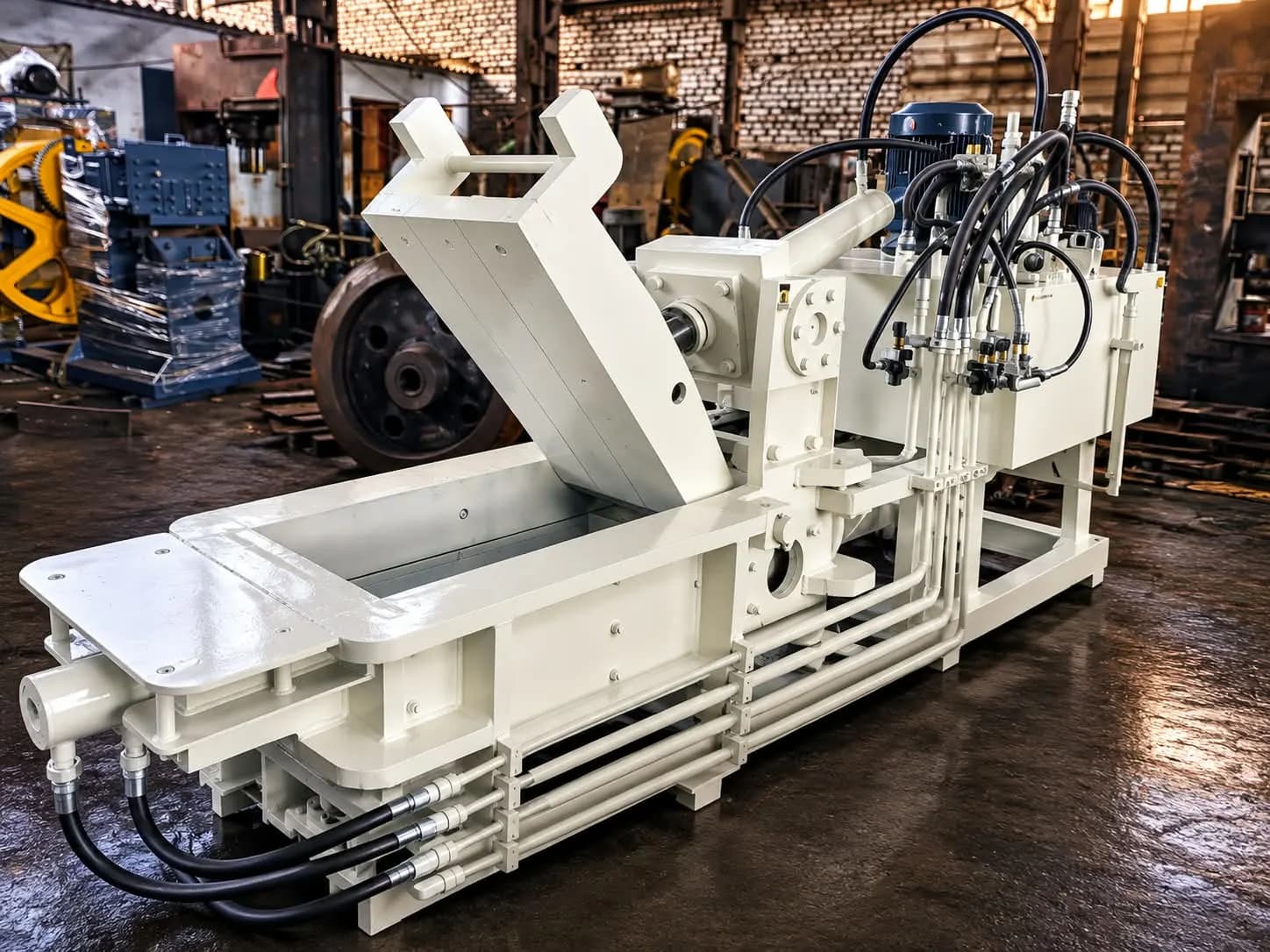

Rear View
Available models & capacities
| Model | Capacity |
|---|---|
| NSG HDS-300 | 300 Ton cutting force |
| NSG HDS-400 | 400 Ton cutting force |
| NSG HDS-500 | 500 Ton cutting force |
Technical specifications
| Cutting Capacity | Up to 250mm - 350mm section thickness (model dependent) |
|---|---|
| Feed Opening Size | 700 x 500mm to 950 x 700mm jaw throat |
| Cylinder Size | Single/twin cutting cylinder, Ø280mm - Ø420mm bore |
| Motor Power | 35 HP - 80 HP |
| Hydraulic Pressure | 290 - 350 kg/cm² |
| Pump Capacity | 100 - 200 LPM |
| Oil Tank Capacity | 450 - 900 Litres |
| Cycle Time | 10 - 18 seconds per cut |
| Machine Weight | 6 - 16 Tons |
| Overall Dimensions | 3.2m x 1.9m x 2.3m (approx., model dependent) |
| Power Supply | 415V, 3 Phase, 50Hz |
| Control Panel | Joystick / push-button hydraulic control panel |
| Automation Type | Manual / semi-automatic operation |
Features
Applications
- Heavy structural beam & plate cutting
- Dense mixed scrap reduction
- Ship-breaking scrap sizing
- Furnace-charge preparation for EAF/IF melting
Industries served
- Steel melting shops (EAF/IF)
- Ship-breaking yards
- Heavy engineering scrap processors
- Demolition & construction scrap dealers
Standard accessories
- Hydraulic power pack
- Reinforced blade set
- Hydraulic clamping arm
- Safety guarding
- Control console
Optional accessories
- Hydraulic material hold-down grab
- Extra heavy-duty blade sets
- Mobile/skid-mounted chassis
- Remote control operation
Media & documentation
Working video
Available on request
Technical drawing
Available on request
Machine brochure (PDF)
Available on request
Warranty
12 months on machine and hydraulics; blades covered against manufacturing defects, wear excluded.
Installation & commissioning
Foundation guidance, on-site erection, hydraulic commissioning and operator training included.
Delivery time
6 - 9 weeks from order confirmation.
Spare parts availability
Blades, hydraulic seals, hoses and clamp components stocked for fast dispatch.
After-sales service & AMC
AMC plans, blade sharpening/replacement service, and emergency breakdown support.
Customisation options
- Custom throat opening for oversized sections
- Mobile skid-mounted version for yard relocation
- Higher tonnage for thicker structural sections
Frequently asked questions
Answers to what buyers most often ask before ordering this machine.
It uses larger-bore cylinders and a reinforced frame to handle thicker structural sections and denser scrap loads than our standard alligator shear.
