What throughput can I expect?

Depending on model and material, throughput ranges from 1 Ton/hr up to 15 Ton/hr.

Do you provide installation and after-sales support?

Yes. Foundation guidance, erection, drive alignment, operator training and AMC plans are all part of our standard support.

Shredding Machines

Shredder Machine

Name: Shredder Machine
Brand: Narshinga Industries

Shredding Machines

Overview

Rugged single or double-shaft shredder that reduces scrap metal, tyres, plastic, and e-waste to a uniform, processable size.

The Shredder Machine tears down bulky, mixed material — metal drums, tyres, plastic containers, e-waste — into smaller, uniform pieces that are easier to sort, transport, and feed into downstream recycling or melting processes.

Interchangeable shaft and blade configurations let the same base machine be tuned for different material streams without a full rebuild.

Get a Quote Talk to an Engineer WhatsApp Us +91 74879 34510 Request Brochure

Machine images

Front View

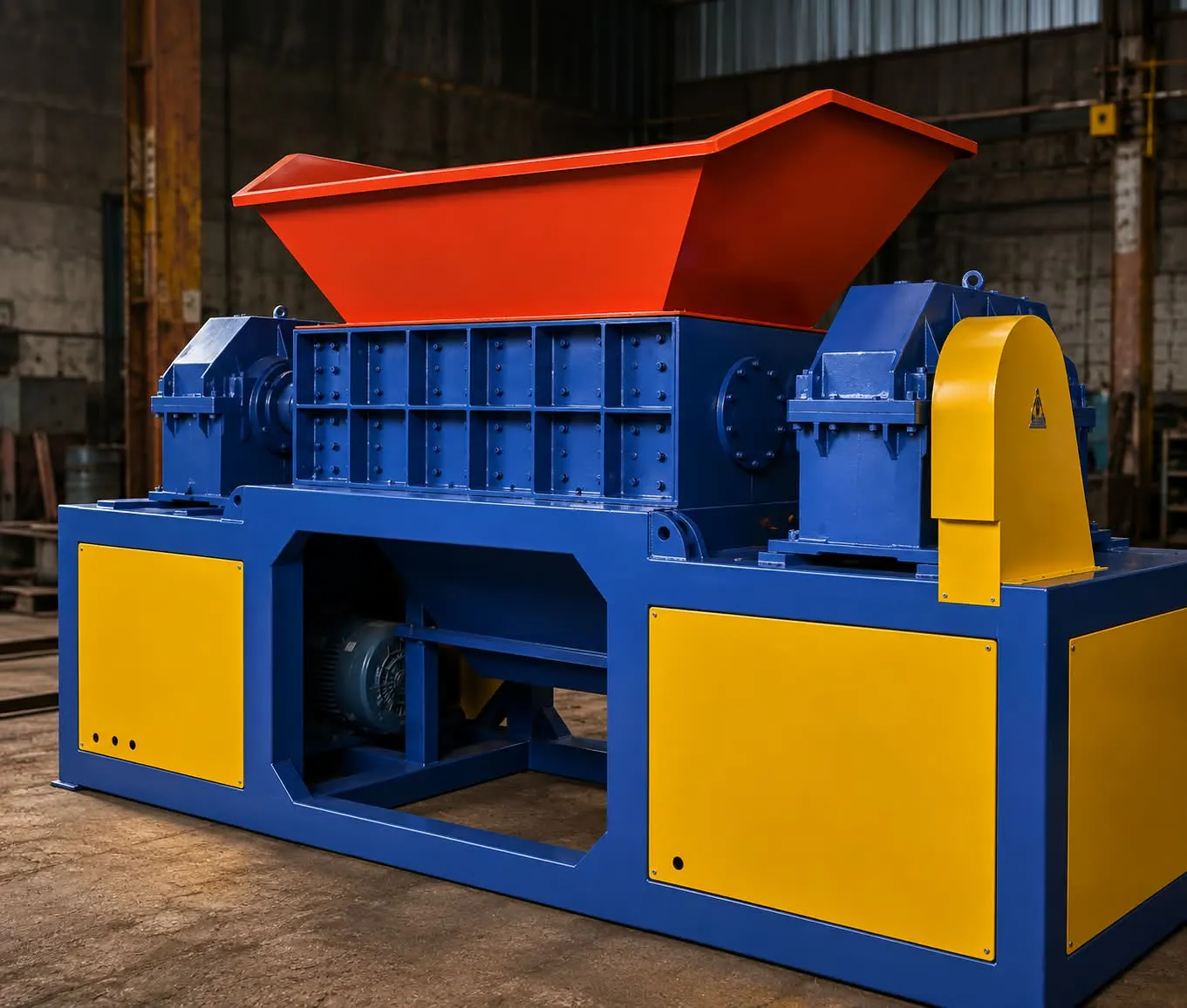

Side View

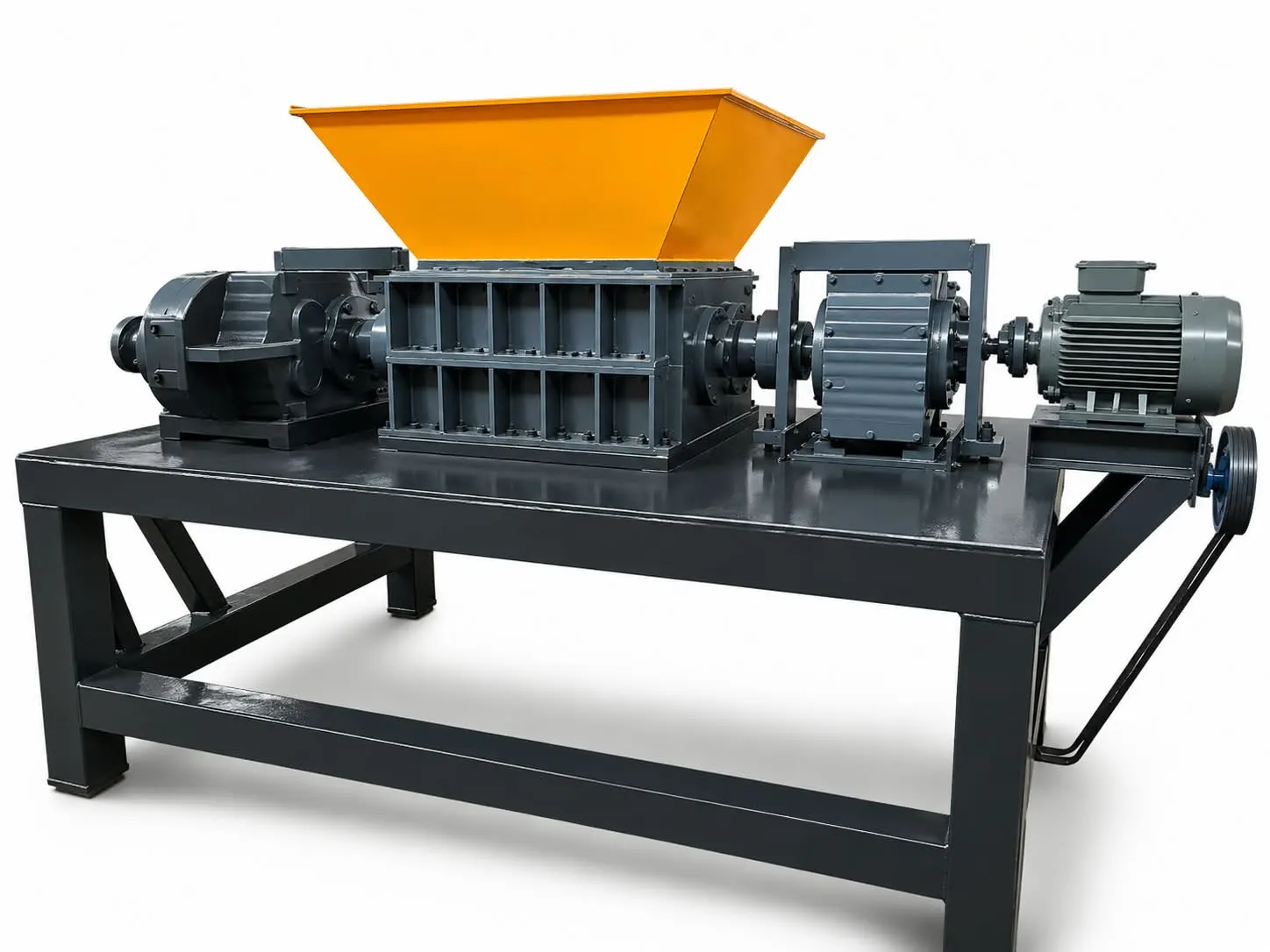

Rear View

Available models & capacities

Model	Capacity
NSG SHR-30	1 - 3 Ton/hr
NSG SHR-75	3 - 7 Ton/hr
NSG SHR-150	7 - 15 Ton/hr

Technical specifications

Cutting Capacity	1 - 15 Ton/hr throughput (model & material dependent)
Feed Opening Size	900 x 600mm to 1600 x 1000mm
Motor Power	30 HP - 150 HP
Oil Tank Capacity	Gearbox lubrication: 40 - 120 Litres
Machine Weight	6 - 20 Tons
Overall Dimensions	4m x 2.2m x 2.8m (approx., model dependent)
Power Supply	415V, 3 Phase, 50Hz
Control Panel	PLC control panel with overload protection & auto-reverse jam clearing
Automation Type	Fully automatic with auto-reverse jam protection

Features

Heavy duty fabricated construction for continuous industrial use

High performance with fast, consistent cycle times

Low power consumption relative to output

Easy operation with operator-friendly controls

Low maintenance design with easy access to wear parts

Long service life, built for multi-shift operation

High productivity with minimal downtime

Safety features including guarding, interlocks & overload protection

Applications

Scrap metal size reduction
Tyre shredding for TDF/recycling
E-waste dismantling & size reduction
Plastic drum & container shredding
Municipal solid waste pre-processing

Industries served

Metal recycling plants
Tyre recycling units
E-waste recyclers
Waste management companies
Cement plants (TDF feedstock)

Standard accessories

Gearbox drive with overload protection
PLC control panel
Safety interlocked feed hopper
Discharge conveyor interface
Blade/hammer set

Optional accessories

Magnetic separator for ferrous recovery
Dust suppression system
Screening/sizing conveyor
Interchangeable blade sets for different materials

Media & documentation

Working video

Available on request

Technical drawing

Available on request

Machine brochure (PDF)

Available on request

Warranty

12 months on machine and gearbox; blades/hammers covered against manufacturing defects, wear excluded.

Installation & commissioning

Foundation guidance, on-site erection, drive alignment and operator training included.

Delivery time

7 - 10 weeks from order confirmation.

Spare parts availability

Blades, hammers, bearings and gearbox components stocked for fast turnaround.

After-sales service & AMC

AMC plans, blade/hammer replacement service, and breakdown support.

Customisation options

Blade/hammer configuration tuned to your material stream
Higher throughput drive for multi-shift operation
Dust suppression & screening add-ons

Frequently asked questions

Answers to what buyers most often ask before ordering this machine.

With the appropriate blade/hammer configuration, it processes scrap metal, tyres, plastic drums, e-waste, and general municipal solid waste.
