Hydraulic Metal Briquetting Press Machine (Briquette Press)
.webp&w=3840&q=75)
Overview
Vertical hydraulic press that compacts loose metal turnings and swarf into dense, uniform briquettes for easier handling and remelting.
The Hydraulic Metal Briquetting Press Machine compresses loose machining swarf, turnings and fine metal chips into solid, uniform briquettes rather than loose bales, cutting oxidation surface area and making the scrap far more efficient to remelt.
A vertical ram and die assembly forms each briquette under sustained high pressure, producing a dense block that stacks and transports without the volume and handling losses of loose turnings.
Machine images
Front View
.webp&w=3840&q=75)

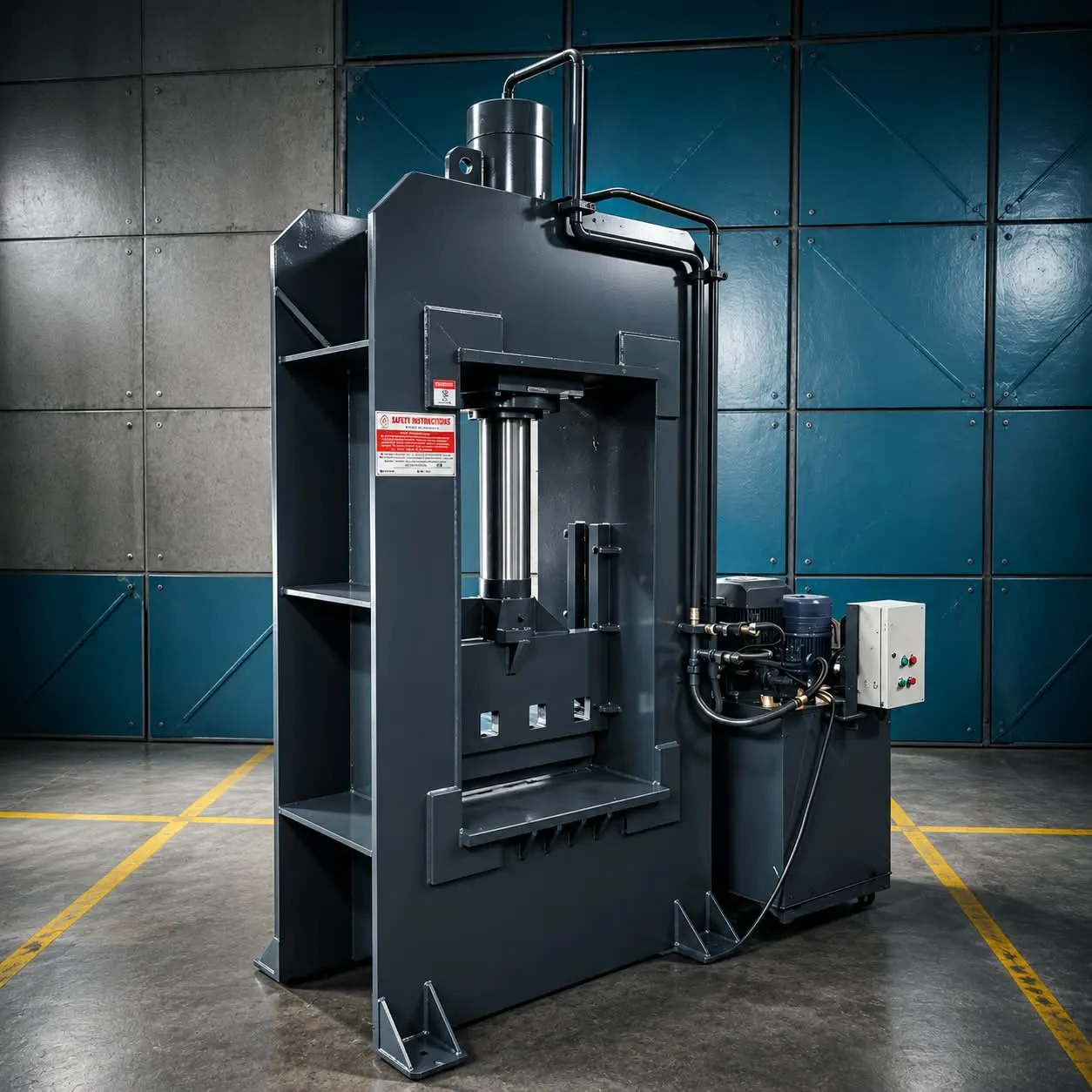

Side View
Available models & capacities
| Model | Capacity |
|---|---|
| NSG BQP-45 | 45 Ton pressing force |
| NSG BQP-80 | 80 Ton pressing force |
| NSG BQP-120 | 120 Ton pressing force |
Technical specifications
| Pressing Force | 45 - 120 Ton |
|---|---|
| Bale Size | Ø80mm x 60mm to Ø150mm x 100mm briquette (die dependent) |
| Feed Opening Size | 500 x 400mm hopper opening |
| Cylinder Size | Single vertical cylinder, Ø150mm - Ø230mm bore |
| Motor Power | 10 HP - 30 HP |
| Hydraulic Pressure | 250 - 320 kg/cm² |
| Pump Capacity | 35 - 90 LPM |
| Oil Tank Capacity | 200 - 450 Litres |
| Cycle Time | 8 - 15 seconds per briquette |
| Machine Weight | 2.5 - 7 Tons |
| Overall Dimensions | 1.8m x 1.6m x 3.6m (approx., model dependent) |
| Power Supply | 415V, 3 Phase, 50Hz |
| Control Panel | PLC control panel with auto-cycle timer |
| Automation Type | Semi-automatic / fully automatic with hopper feed |
Features
Applications
- Machine shop turnings & swarf compaction
- Aluminium chip briquetting
- Cast iron & steel turnings densification
- Remelt-ready scrap preparation
Industries served
- CNC & machining workshops
- Foundries
- Aluminium extrusion & casting units
- Steel re-rolling mills
Standard accessories
- Hydraulic power pack
- PLC auto-cycle control
- Die & punch assembly
- Safety guarding
- Briquette collection tray
Optional accessories
- Automatic hopper feed system
- Chip crusher/pre-compactor
- Coolant/oil separation system
- Interchangeable die sets for different briquette sizes
Media & documentation
Working video
Available on request
Technical drawing
Available on request
Machine brochure (PDF)
Available on request
Warranty
12 months on machine and hydraulic system; 6 months on electricals.
Installation & commissioning
Installation, commissioning and operator training handled by our team.
Delivery time
5 - 7 weeks from order confirmation.
Spare parts availability
Dies, punches, cylinder seals and control components stocked for quick dispatch.
After-sales service & AMC
AMC plans, die replacement service and breakdown support.
Customisation options
- Custom die size for specific briquette dimensions
- Automatic hopper feed integration
- Coolant/oil separation for wet turnings
Frequently asked questions
Answers to what buyers most often ask before ordering this machine.
Loose turnings have a lot of surface area and trapped oil/coolant, which causes oxidation loss and handling difficulty. Briquetting compacts them into a dense, solid block that remelts far more efficiently.
